SoundaXe® Wooden Slats

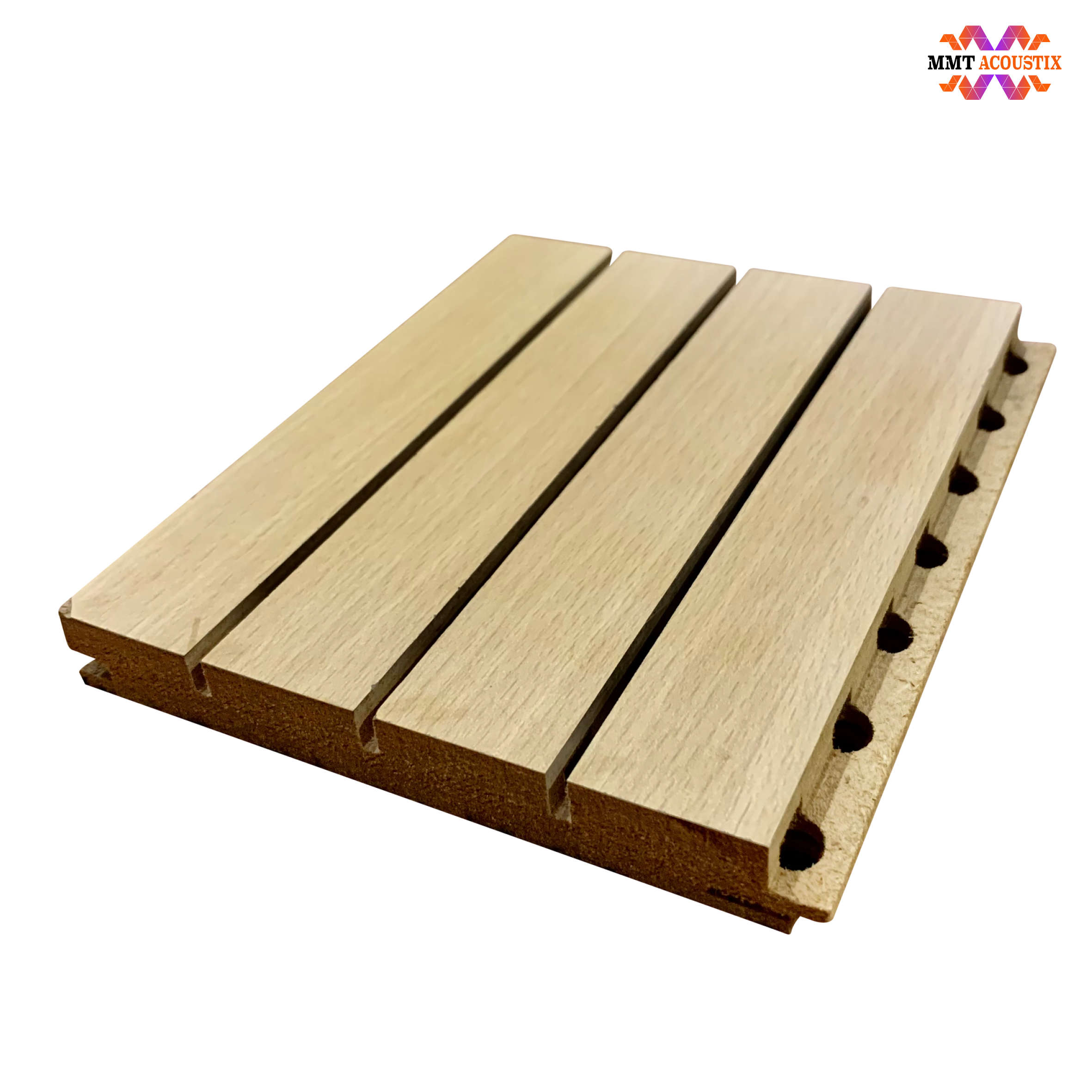

Acoustic Wooden Slat Panels
Wooden slat acoustic panels that combine elegant wood finishes with sound absorption. Made by MMTPL at the Palwal plant, Haryana, on MDF, FR MDF, HDF or HDHMR, with or without acoustic fleece backing.
Room before and after SoundaXe® Wooden Slats
The problem it solves
What SoundaXe® Wooden Slats fix for you
Home theatres that boom and echo
Slats with acoustic fleece backing reduce reverberation, so dialogue and music stay clear.
Recording studios with a live, reflective sound
Cuts reverberation in the room while keeping a warm wood finish.
Meeting rooms where voices blur
Brings reverberation down in offices and meeting rooms for clearer speech.

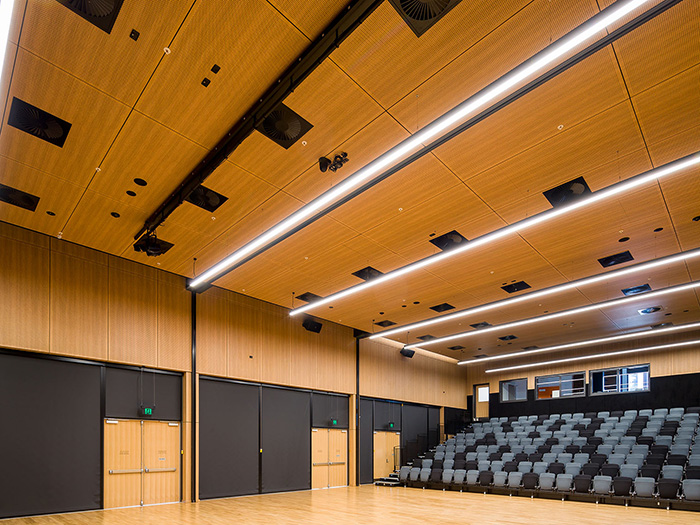

Auditoriums and theatres
Controls reverberation across large wall areas with a premium wood look.
Noisy restaurants and cafés
Absorbs reflected sound so the room feels calmer.
Living spaces that sound hard
Adds sound absorption and warmth to residential rooms.
Applications
Where SoundaXe® Wooden Slats go
Home theatres
Home theatres
Reverberation control with a wood finish.
Recording studios
Recording studios
Absorption and diffusion on studio walls.
Offices and meeting rooms
Offices and meeting rooms
Clearer speech in work spaces.
Also used in
- Auditoriums and theatresLarge wall areas in a premium finish.
- Residential spacesFeature walls in living areas.
- Restaurants and cafésCalmer dining rooms.
- Hotel lobbiesReception and lounge walls.
- Offices and boardroomsFeature walls in meeting spaces.
- Retail and showroomsPremium store interiors.
Specifications
Technical data
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Substrate options | MDF, FR MDF, HDF, HDHMR |
| Slat patterns | 13-3, 14-2, 28-4, 59-5 |
| Standard sizes | 2440 x 192 mm, 2440 x 128 mm |
| Thickness | 14 mm, 16 mm, 18 mm |
| Backing | Supplied with or without acoustic fleece |
| Coverage per unit | 96 sq ft |
| Fire rating | EN 13501-1, Class B s1 d0 |
| Formaldehyde class | EN 13986: E1 |
| Installation system | Tongue-and-groove, or aluminium channel and clip |
| Installation hardware | 12 channels and 110 clips per 96 sq ft unit |
| Size tolerance | ±5% |
| Country of origin | India |

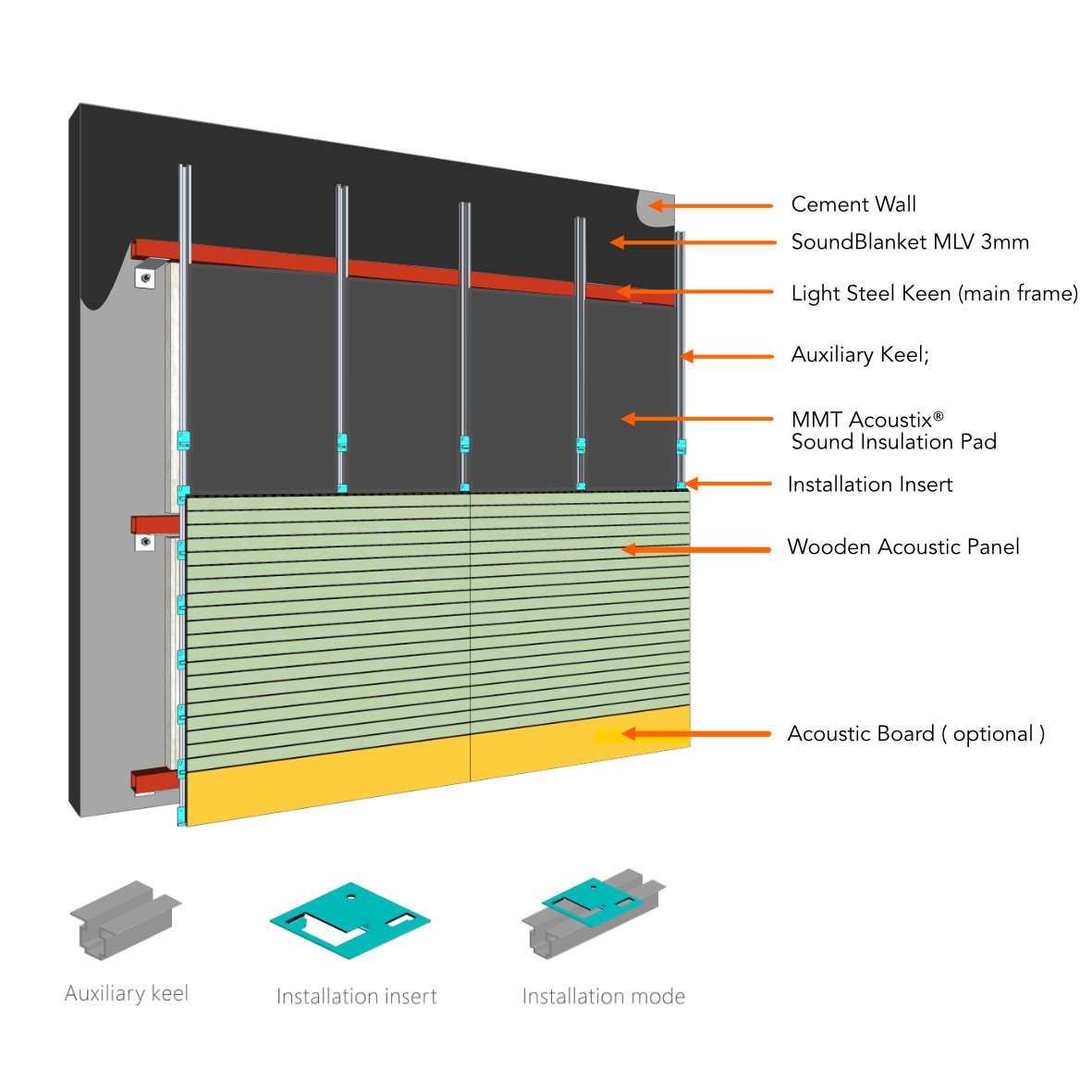

Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and project supply
Custom sizing, BOQ support
Customisable sizing is available, along with project-based BOQ and specification support, quote requests and sample orders.
