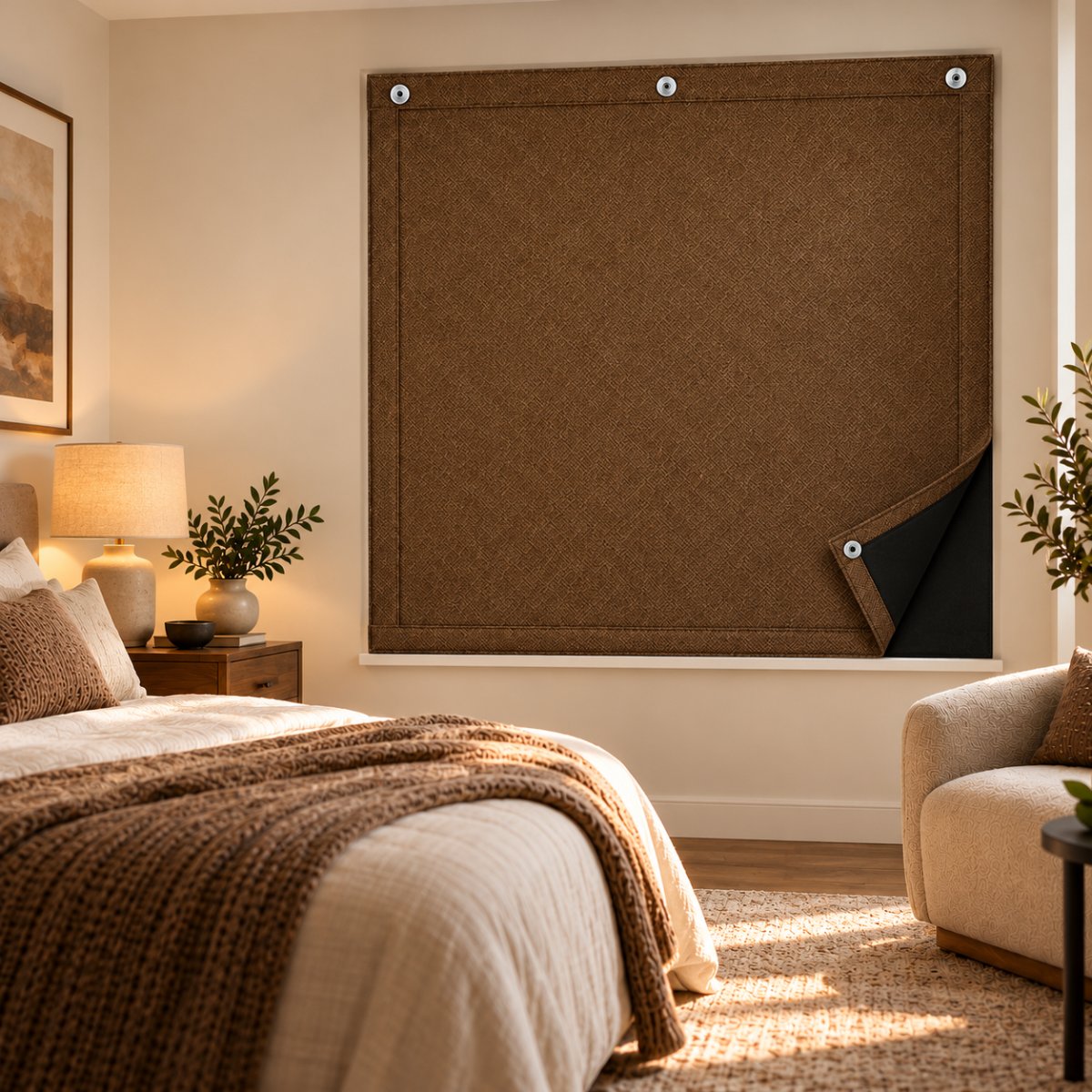

SoundBlanket® Soundproof Curtain
Soundproof Curtains for Windows and Doors
A heavy-duty sound-isolating curtain with a SoundBlanket® 3 mm mass loaded vinyl core. Cuts external noise through windows and doors in homes, offices and commercial spaces. Made by MMTPL at the Palwal plant, Haryana.
Applications
Where the soundproof curtain goes

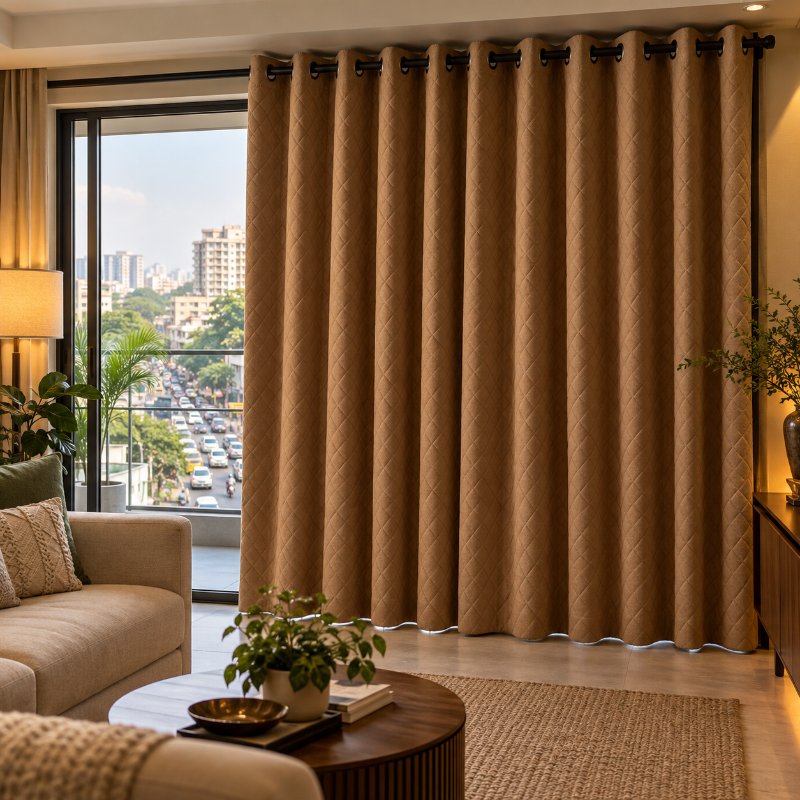

Residential spaces
Bedrooms, living rooms and home offices.

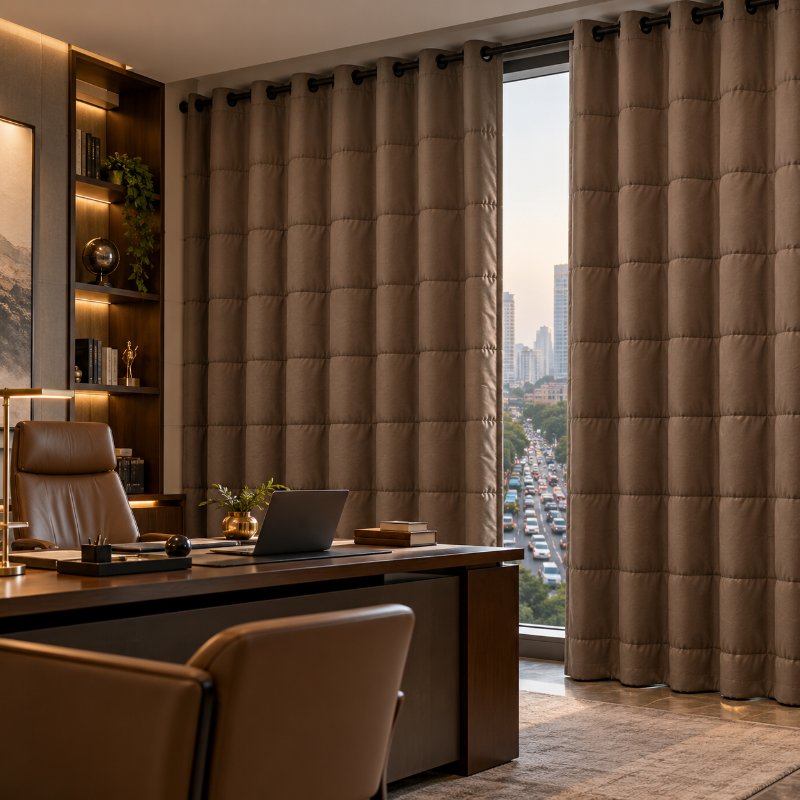

Commercial offices
Commercial offices
Conference rooms and private cabins.

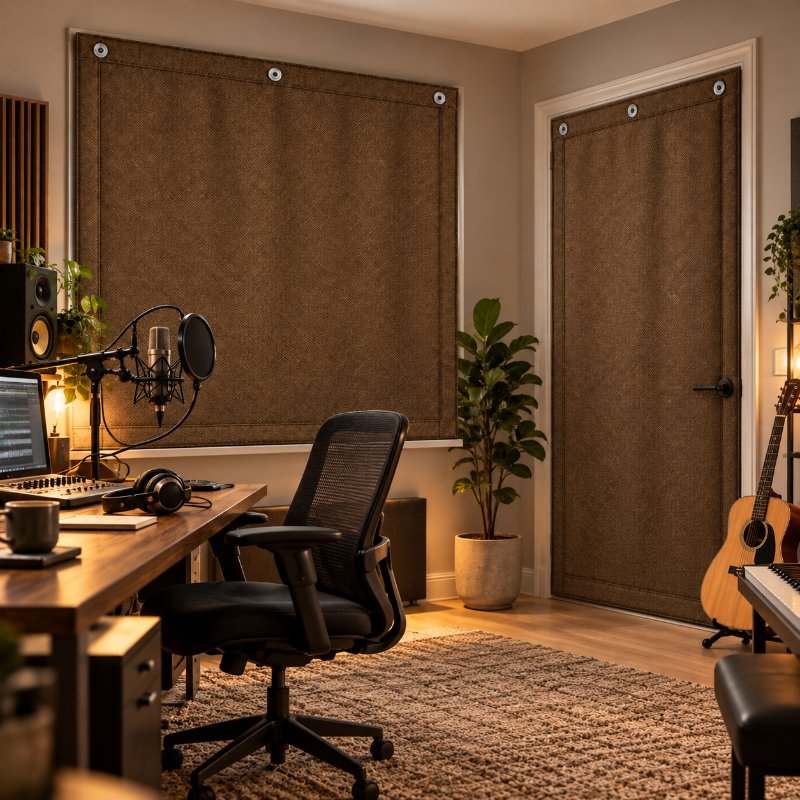

Recording studios
Recording studios
Reduces external noise interference.
Also used in
- HotelsPrivacy and noise control for guest rooms.
- Educational institutionsQuiet study areas and classrooms.
- Healthcare facilitiesPeaceful environments in clinics and hospitals.
- Home theatresWindows and doors in theatre rooms.
- BedroomsWindows facing traffic noise.
- Podcast roomsGlass walls and windows.
Why SoundBlanket®
Key features
Noise reduction
Blocks outside noise by 50 to 80%, by up to 30 dB, rated STC 30.
Cost-effective alternative
80% cheaper than soundproof doors, with instant noise relief.
Easy installation
Hook hanging. No complex setup or professional help needed.
Retractable design
Draw it open or closed as needed.
Thermal insulation
Reduces heat transfer through windows and doors.
Multi-layer construction
800 GSM polyester face, acoustic foam and a 3 mm SoundBlanket® MLV core.
Fire rated
Class B fire rating.
Custom sizes
8 x 4 ft and 5 x 4 ft standard, custom sizes to order.
Specifications
Technical data
| Manufactured by | MMTPL (Mahabir Multi Tech Private Limited), Palwal Plant, Haryana, India |
| Construction | 800 GSM woven polyester face, acoustic foam absorber, SoundBlanket® 3 mm MLV core |
| Layers | 800 GSM polyester fabric, 4 mm MMT Acoustix® acoustic foam, 3 mm SoundBlanket® MLV, 4 mm MMT Acoustix® acoustic foam, 800 GSM polyester fabric |
| Sizes | 8 x 4 ft, 5 x 4 ft, custom sizes to order |
| Total thickness | 10 to 12 mm |
| Surface weight | 5.5 kg/m² |
| Noise reduction | Up to 30 dB |
| STC | 30 |
| Acoustic test standard | ASTM E90 |
| Fire rating | Class B |
| Light blockage | 100% |
| Colours | Brown, black, custom shades to order |
| Installation | Hook hanging |
| Warranty | 3 years |
| Suggested placement | Windows and doors |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and projects
Custom sizes and shades
Custom sizes and custom shades are made to order. BOQ, specification and drawing support for project quantities.
