Echsorbix® Canvas
Printed Acoustic Felt Panels
UV printed PET felt panels that look like premium wallpaper and reduce echo, reverberation and noise. Over 1 million designs, or supply your own artwork. Made by MMTPL at the Palwal plant, Haryana.
The problem it solves
What Echsorbix® Canvas fixes for you

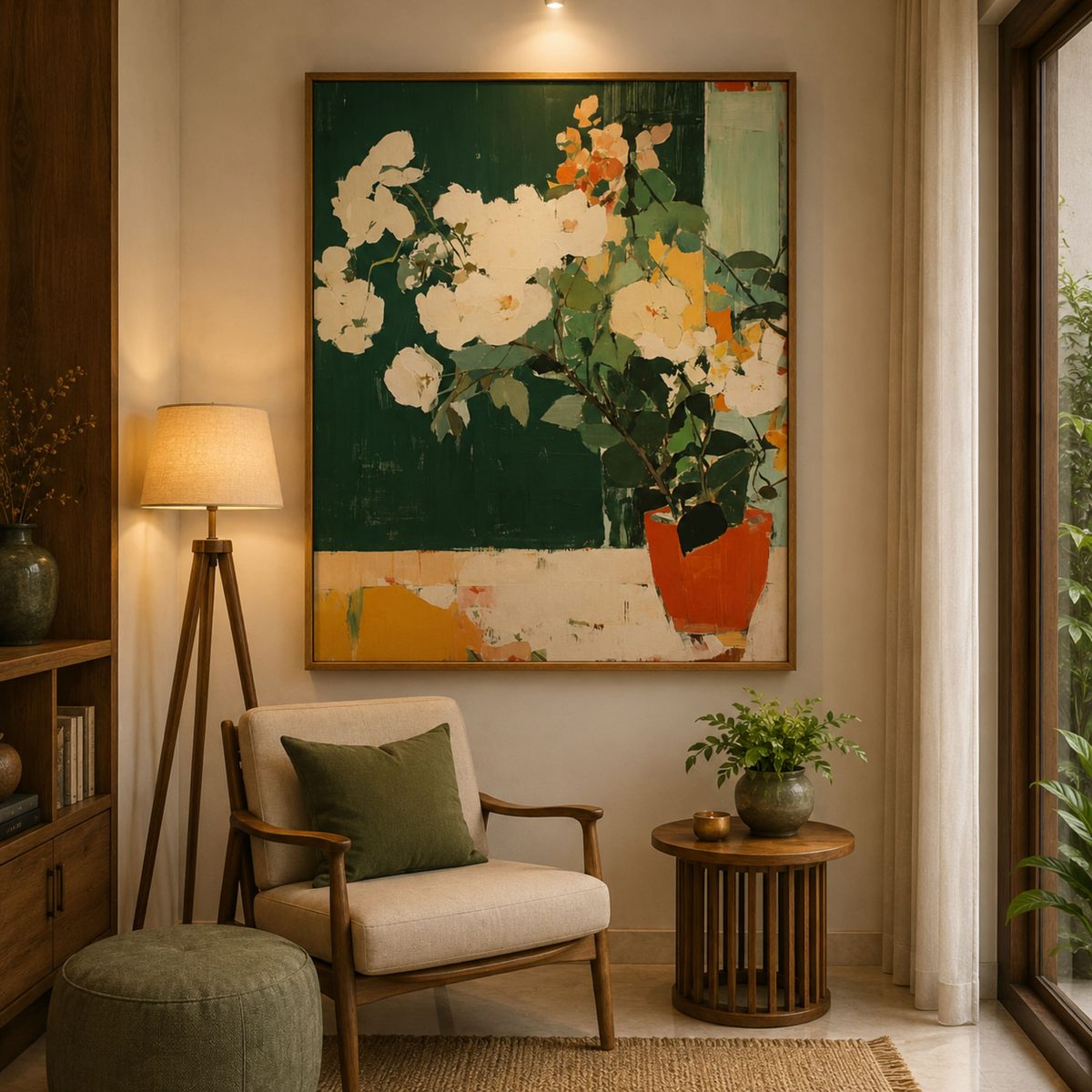

Echo behind a decorative wall
Canvas gives the look of wallpaper while absorbing echo, reverberation and unwanted noise.
Choosing between art and acoustics
UV printing does not seal the felt, so the panel keeps its rated absorption.
Brand walls that bounce sound
Any artwork, photograph or brand graphic prints onto an absorbing panel.
Noisy offices, conference rooms and coworking zones
Clearer speech with a designed finish.
Loud hotels, restaurants and lounges
A calmer room that matches the theme.
Echoing classrooms and clinics
Better acoustics in learning and care spaces.
Applications
Where Echsorbix® Canvas goes

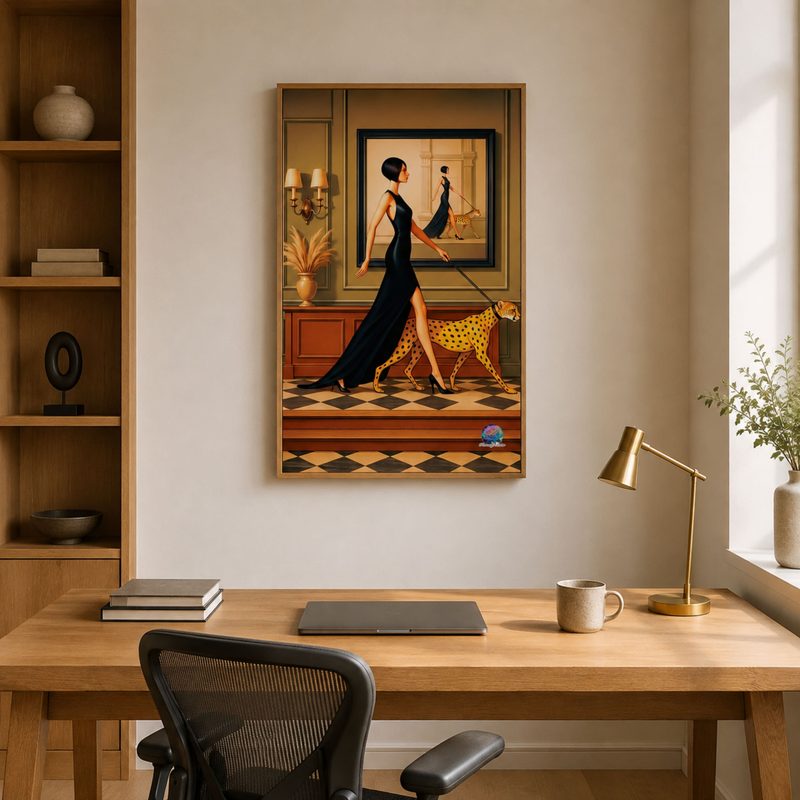

Commercial spaces
Offices, conference rooms, coworking zones.

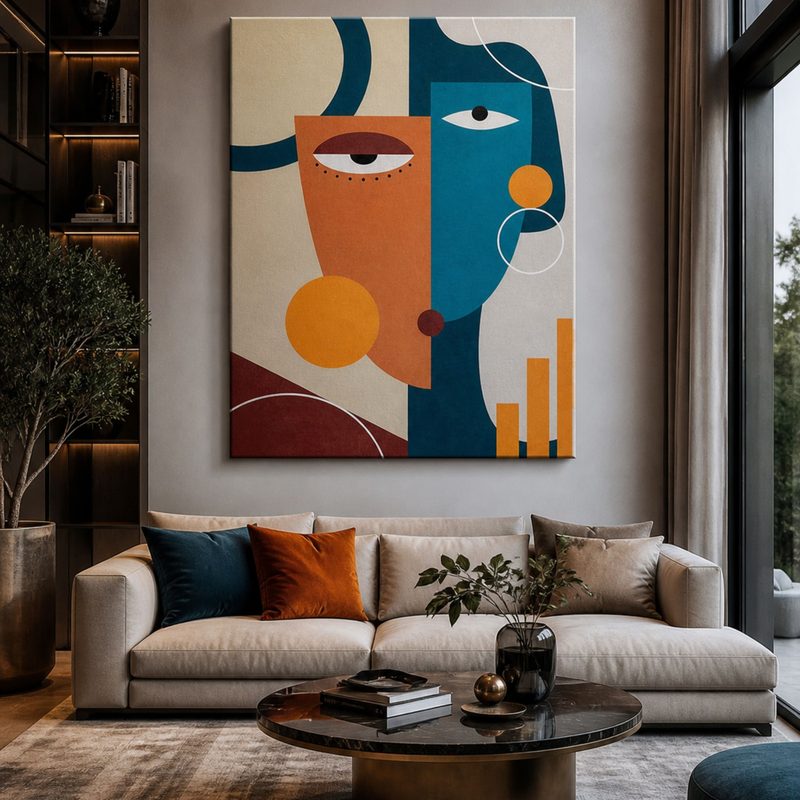

Residential spaces
Living rooms, bedrooms, home offices.

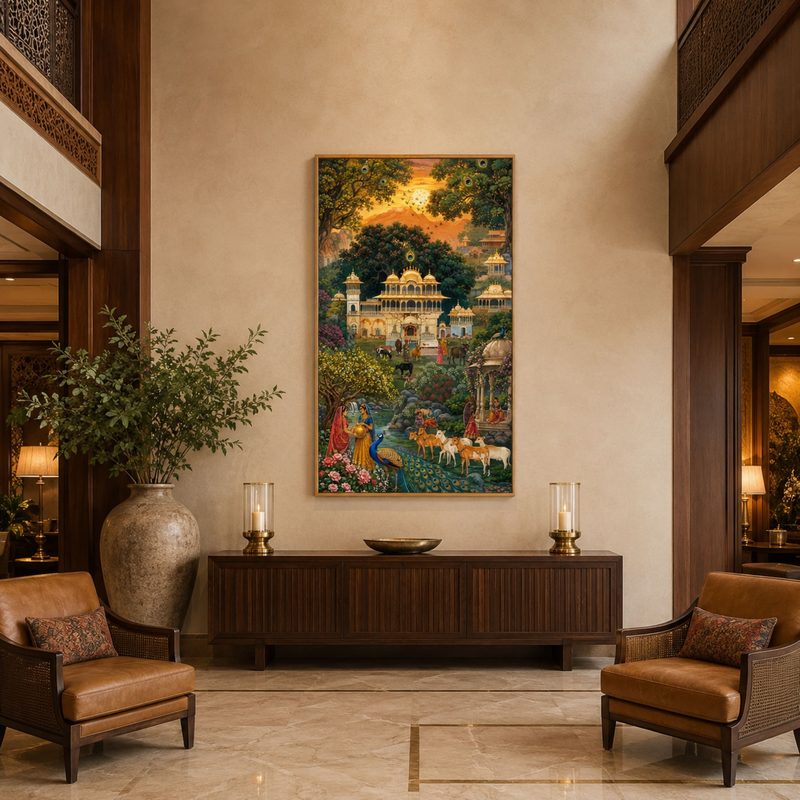

Hospitality
Hotels, restaurants, lounges.
Also used in
- Public spacesLibraries, auditoriums, museums.
- Educational institutionsClassrooms, training centres, lecture halls.
- Healthcare facilitiesClinics, wellness centres, hospitals.
- Offices and meeting roomsBranded walls that absorb noise.
- Restaurants and cafesArtwork walls in dining areas.
- Home theatresPrinted art that treats the room.
Specifications
Technical data
| Material | 100% PET polyester fibre, non-woven |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Standard thickness | 9, 12, 18, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1800 x 900 mm (6 x 3 ft); custom sizes up to 3000 x 2000 mm |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15 (1500 GSM), EchoPro 18 (1800 GSM), EchoMax 22 (2200 GSM) |
| NRC | 0.30 (9 mm), 0.40 (12 mm), 0.50 (18 mm), 0.60 (24 mm), 0.90 (9 mm over 20 mm BassBloc®) |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recycled content | Minimum 60%, 100% recyclable |
| Colours | 40+ standard; custom development available |
| Printing | UV printing, fade resistant |
| Design options | Over 1 million print designs |
| Installation | Wall mounted |
| Lead time | 3 to 7 days |
| Warranty | 5 year colour fastness |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and OEM
Your artwork, printed on acoustic felt
Any artwork, photograph or brand graphic can be supplied for print, with tailor-made designs, patterns and sizes up to 3000 x 2000 mm. BOQ, specification and drawing support for project quantities.
