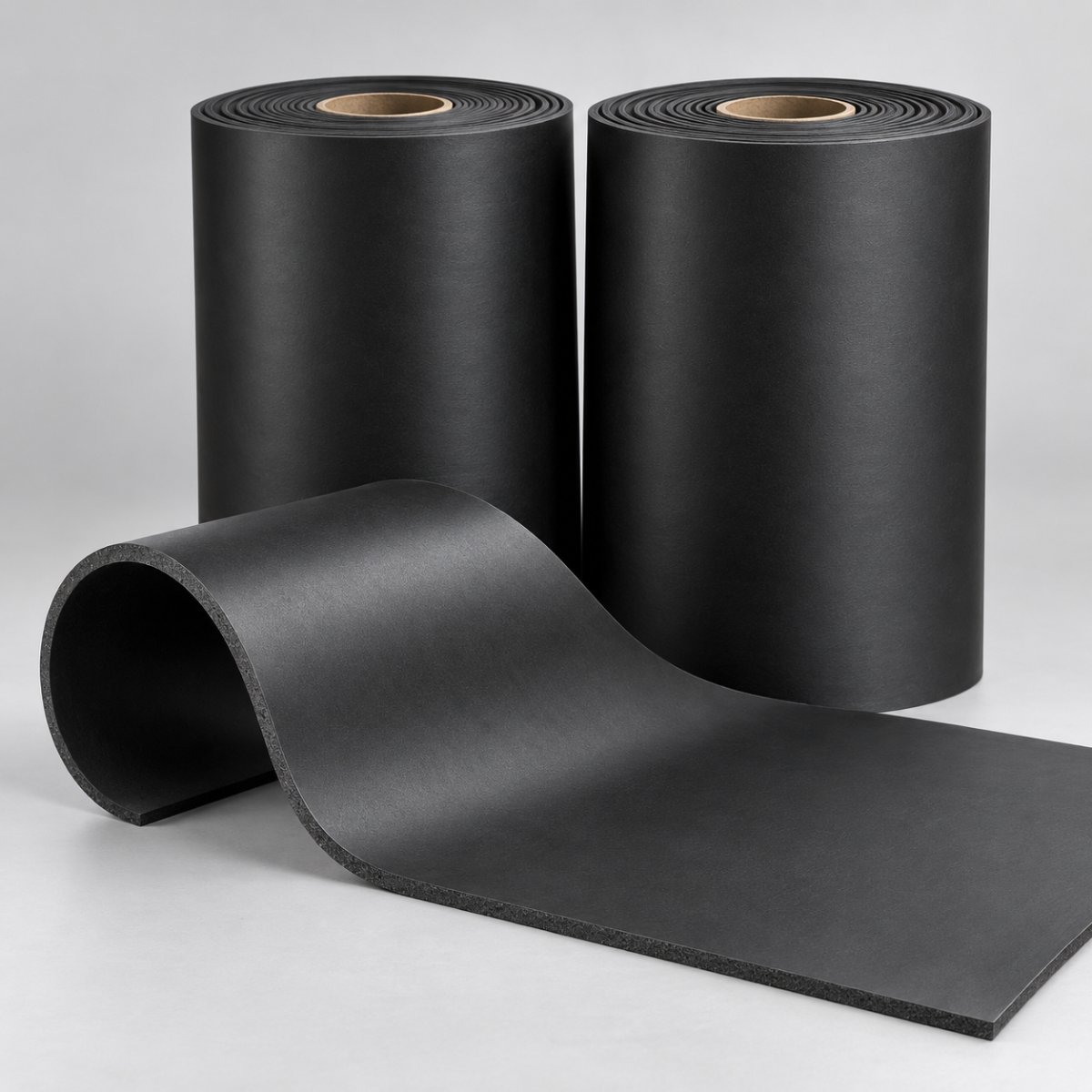

SoundBlanket® MLV
Mass Loaded Vinyl Noise Barrier
A high-density flexible noise barrier for walls, ceilings and floors. SoundBlanket® works as the dense isolation layer in multi-layer soundproofing assemblies, manufactured by MMTPL in India.
Applications
Where SoundBlanket® goes
MMTPL has invested in multiple manufacturing units across India to ensure consistent quality and stable supply for builders, architects, acoustic consultants and building material resellers.

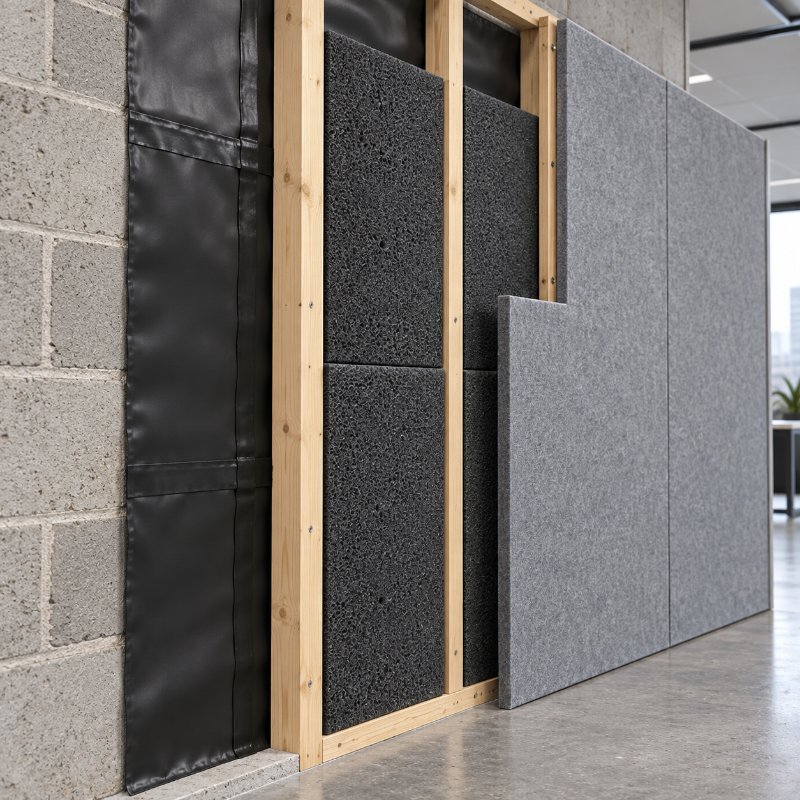

Walls and partitions
Used inside gypsum, wood or metal partitions to reduce sound transfer between rooms in apartments, hotels, offices, clinics and commercial projects.

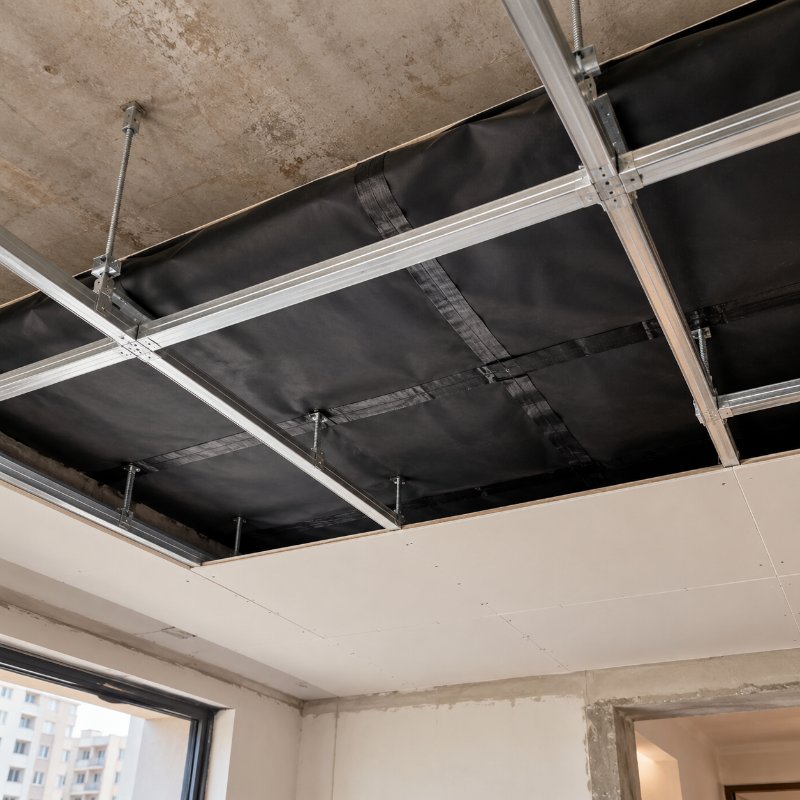

Ceilings
Adds a dense barrier layer in false ceiling assemblies where impact and airborne noise needs control.

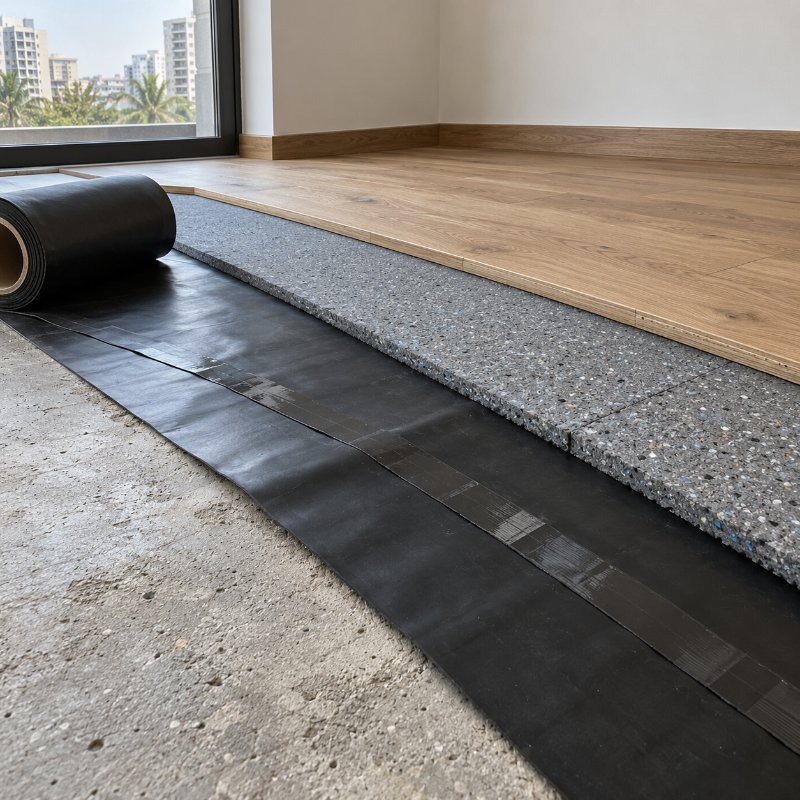

Floors
Works as a noise barrier layer in flooring build-ups and underlayment assemblies when combined with correct decoupling layers.
Also used in
- Home theatresIsolation layer inside walls and ceilings.
- Cinemas and multiplexesScreen-to-screen wall build-ups.
- HotelsGuest room and banquet partitions.
- Recording studiosIsolated walls, floors and ceilings.
- Offices and meeting roomsPrivate cabins and boardrooms.
- ApartmentsWalls and floors between flats.
Installation note: for best results, MLV must be installed as a continuous barrier with properly sealed joints and perimeter detailing.
Choose a thickness
Sound Transmission Class by thickness
| Thickness | STC | Surface weight | Typical use |
|---|---|---|---|
| 2.5 mm | STC 30 | 5.25 kg/m² | Residential partitions and retrofit upgrades |
| 4 mm | STC 34 | 8.4 kg/m² | Hotels, theatres, studios, commercial interiors |
| 6 mm | On request | 12.6 kg/m² | Industrial enclosures and high-isolation builds |
STC tested to ASTM E90 and rated to ASTM E413. Surface weight for 2.5 mm and 4 mm are tested values; 6 mm is calculated from the 2100 kg/m³ material density. Standard rolls: 10 x 1.2 m and 5 x 1.2 m.
Specifications
Technical data
| Material | Polymeric resin compound with inert mineral filler |
| Material density | 2100 kg/m³ |
| Standard thickness | 2.5 mm, 4 mm, 6 mm |
| Custom thickness | 1 mm to 10 mm, manufactured to project requirement |
| Standard roll sizes | 10 x 1.2 m and 5 x 1.2 m |
| Sheet sizes | 8 x 4 ft, 16 x 4 ft, 32 x 4 ft |
| Coverage and weight | 2.5 mm: 8 x 4 ft covers 32 sq ft at 22 kg 4 mm: 8 x 4 ft covers 32 sq ft at 28 kg |
| Fire classification | Class A (ASTM E84) |
| Tensile strength | > 30 N/50 mm (NT-67) |
| Elongation at break | > 500% (NT-67) |
| Tear strength (nail) | 153 to 235 N/50 mm (EN 12310-1) |
| Cold flexibility | To −20 °C (EN 1109) |
| Water vapour resistance | µ ≥ 1806 (UNE-EN 1931 Method B) |
| Water absorption, 24 h at 23 °C | 0.003% (ISO 62 Method 1) |
| Shore hardness A | 30 ±10 (NT 74) |
| Composition | Lead-free, non-toxic |
| Packing | Rolled, 120 x 30 x 30 cm carton |
| Shelf life | Over 35 years, stored away from direct heat and sunlight |
| Test standards | ASTM E90 and ASTM E413 (sound transmission class), ASTM C423 (acoustic), ASTM E84 (surface burning), ISO 354 |
| White label and OEM | Available for international customers, including private-label branding and OEM supply |
| Dispatch | 2 to 5 working days within India; 7 to 10 days for export |
| Manufactured in | India, by Mahabir Multi Tech Private Limited |

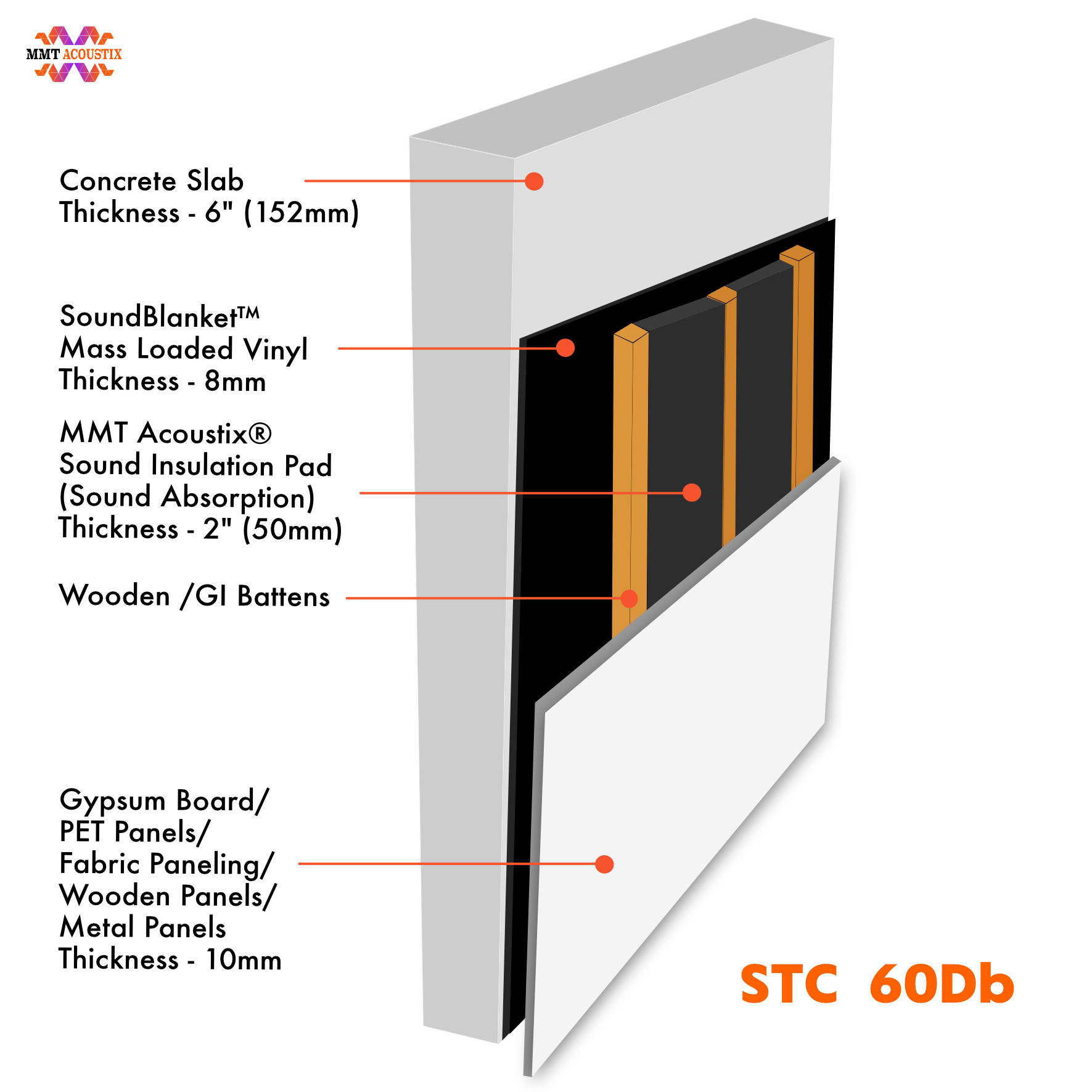

Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLVThis product
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
In projects
Specified as the isolation layer
Used in hospitality, cinema and commercial builds across India and the Middle East.
Cinépolis, Mumbai
Multiplex sound isolation
Hilton, Dubai
MLV soundproofing across villa developments
JW Marriott
Banquet hall soundproofing
St. Regis
Floor isolation system
Custom, white label and OEM
Built to your specification
Beyond the standard 2.5 mm, 4 mm and 6 mm grades, MMTPL manufactures SoundBlanket® in custom thicknesses from 1 mm to 10 mm, along with project-specific roll lengths, widths and densities.
We supply white label and OEM production to international customers, including private-label branding, custom packaging and buyer-specified formulations. Export dispatch is typically 7 to 10 days.
FAQs
Questions about SoundBlanket® MLV
What is SoundBlanket® Mass Loaded Vinyl (MLV)?
Why choose MMTPL as a mass loaded vinyl manufacturer in India?
What thickness should I choose: 2.5 mm, 4 mm or 6 mm?
- 2.5 mm: lightweight option for residential or small office partitions
- 4 mm: balanced choice for professional projects such as hotels and home theatres
- 6 mm: heavy-duty isolation for industrial or high isolation targets
