BassBloc®
Sound Absorber for Low-Frequency Noise
A high-density polyurethane sound absorber designed to isolate low-frequency sound transmission through walls, ceilings and floors. Manufactured by MMTPL at the Palwal plant, Haryana.
Applications
Where BassBloc® goes

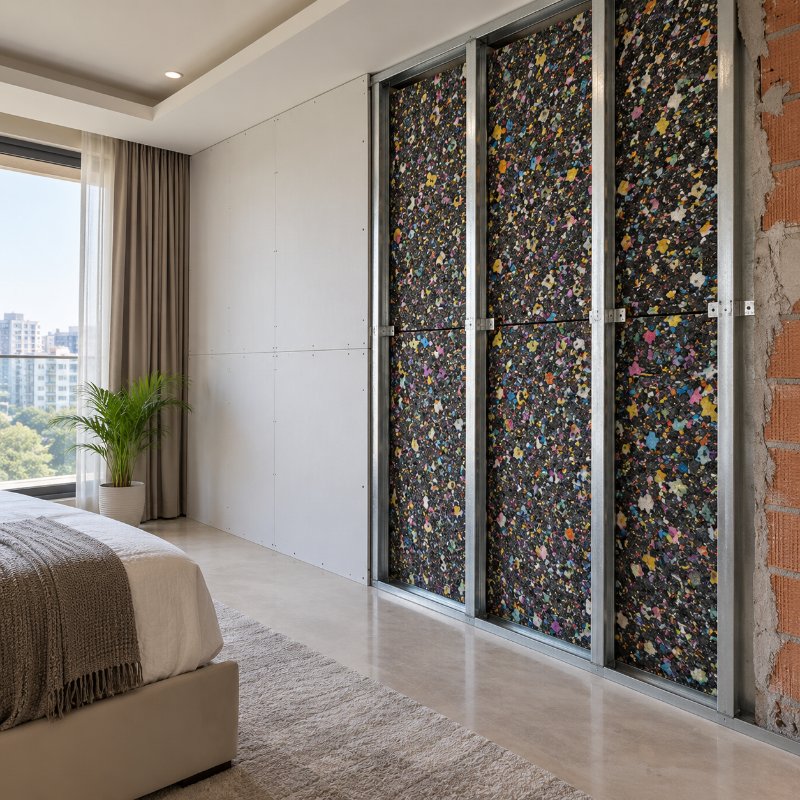

Cavity walls in residences
Ideal for use within cavity walls to isolate sound between adjoining dwellings, flats and individual rooms in residential buildings, ensuring privacy and reducing noise transmission.

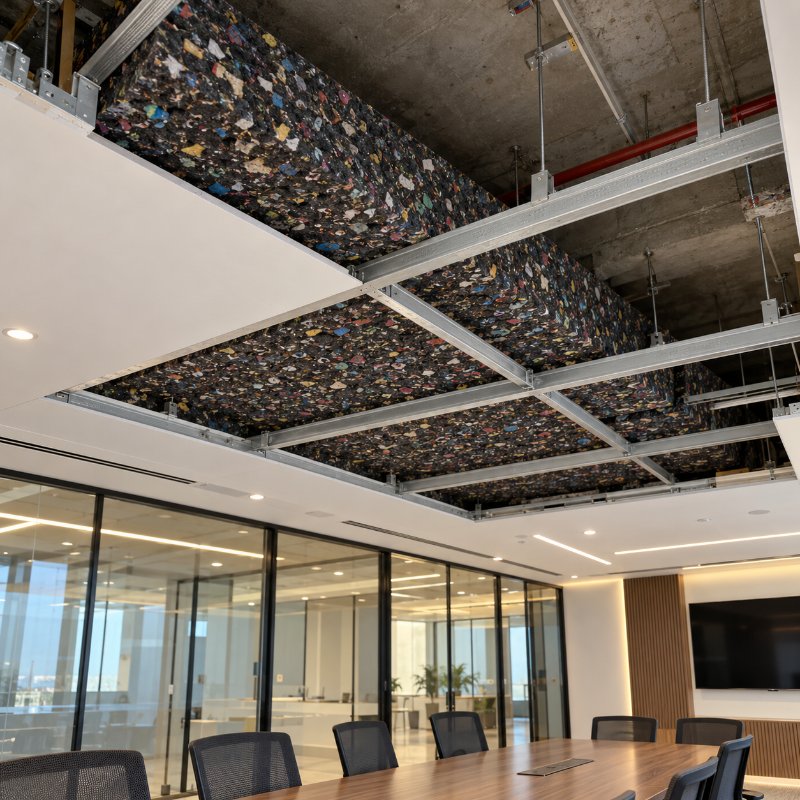

Commercial spaces
Installed in the cavities of external walls and suspended ceilings, BassBloc® blocks low to high-frequency noise in commercial settings with moderate sound levels, such as bars, restaurants and supermarkets.

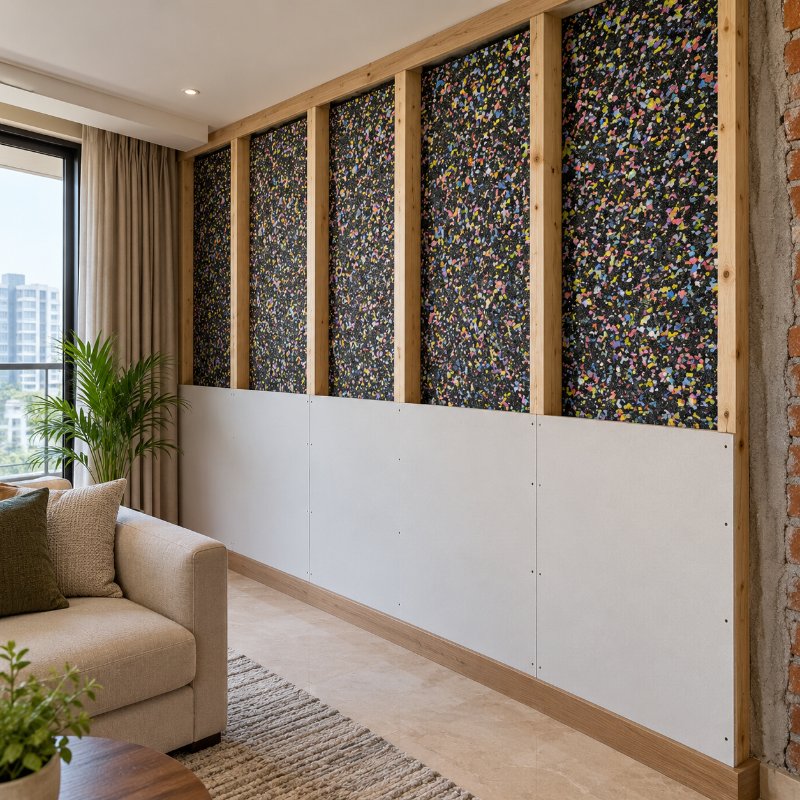

Shared living spaces
Used to renew and enhance sound isolation in walls separating different living units within residential buildings, for improved noise control in shared living environments.
Also used in
- Industrial noise separationActs as a barrier between office spaces and production areas within industrial buildings, reducing noise transfer for a more comfortable and productive work environment.
- Home theatresInside walls and ceilings behind the finish.
- Recording studiosLow-frequency control in isolated rooms.
- HotelsGuest room and corridor partitions.
- OfficesMeeting room and cabin partitions.
- CinemasWall build-ups between screens.
Installation note: installed beneath the finish layer and fully covered with acoustic panels, gypsum or wooden panelling. Not to be left exposed.
Why BassBloc®
Key features
Effective low-frequency isolation
Absorbs in the 100 to 500 Hz range where bass and machine noise sit.
Impact noise reduction
Adds mass and damping to wall, ceiling and floor build-ups.
Versatile acoustic layer
Works inside walls, ceilings and floors, under any finish.
Durable performance
High-density 100 kg/m³ material with ±5% size tolerance.
Flexible installation
Rolls of 6 x 3 ft that cut easily to fit cavities and frames.
Clean composition
Free of chemicals, toxins and odour.
Specifications
Technical data
| Material | High-density acoustic barrier foam |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Panel size | 1800 x 900 mm (6 x 3 ft), 18 sq ft per roll |
| Thickness | 20 mm standard, 40 mm available |
| Density | 100 kg/m³ |
| Absorption range | 100 to 500 Hz (low-frequency) |
| NRC | 0.85 |
| Acoustic test standard | ASTM C423 |
| Fire rating | Standard grade non-FR; UL 94 Class HS1 fire retardant grade on request |
| Size tolerance | ±5% |
| Installation | Installed beneath the finish layer and fully covered with acoustic panels, gypsum or wooden panelling. Not to be left exposed. |
| Warranty | One year against manufacturing defects |
| Composition | Free of chemicals, toxins and odour |
| Country of origin | India |

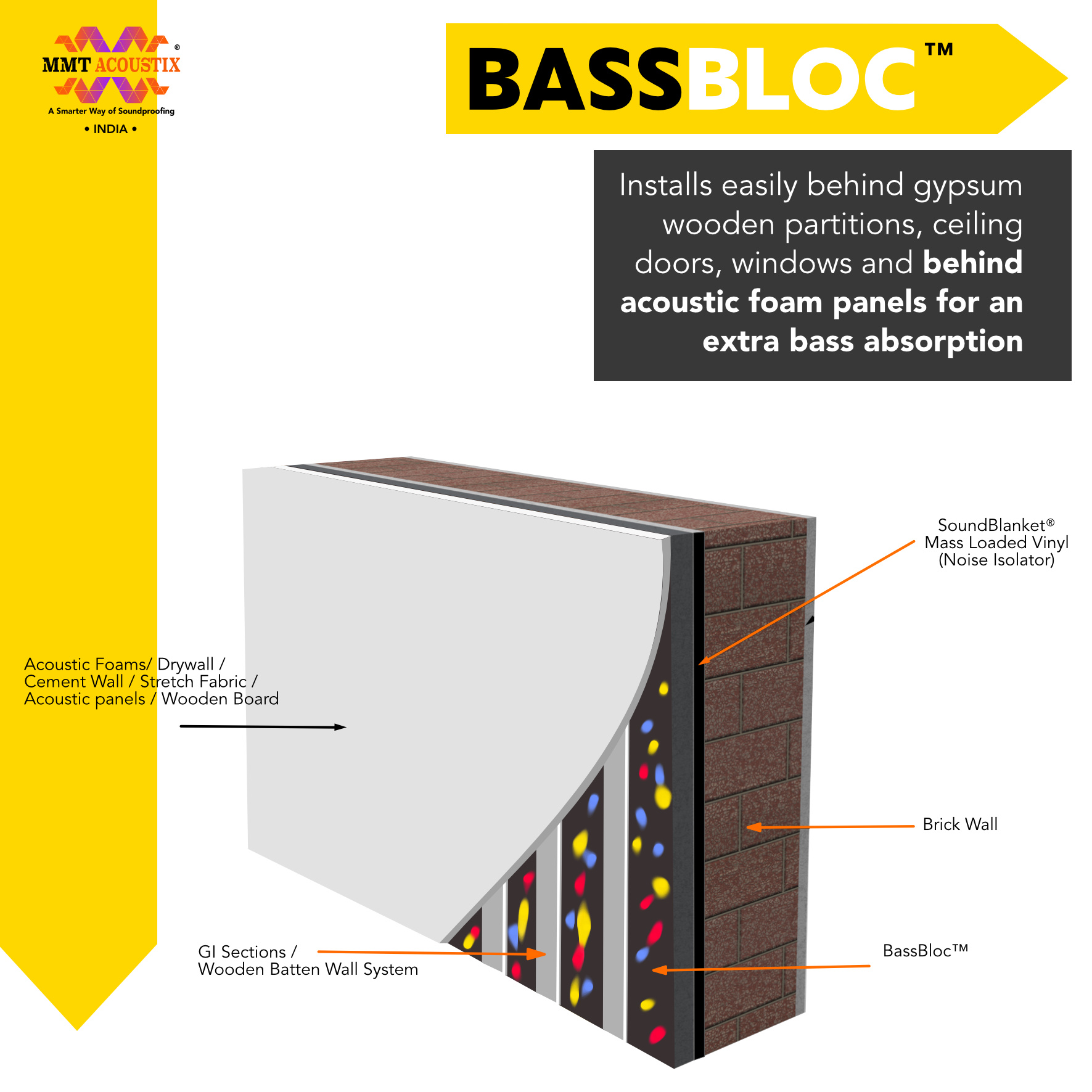

Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®This product
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
