SoundaXe® Pulse, M-Dot and Vertigo
Wooden Acoustic Panels and Sound Diffusers

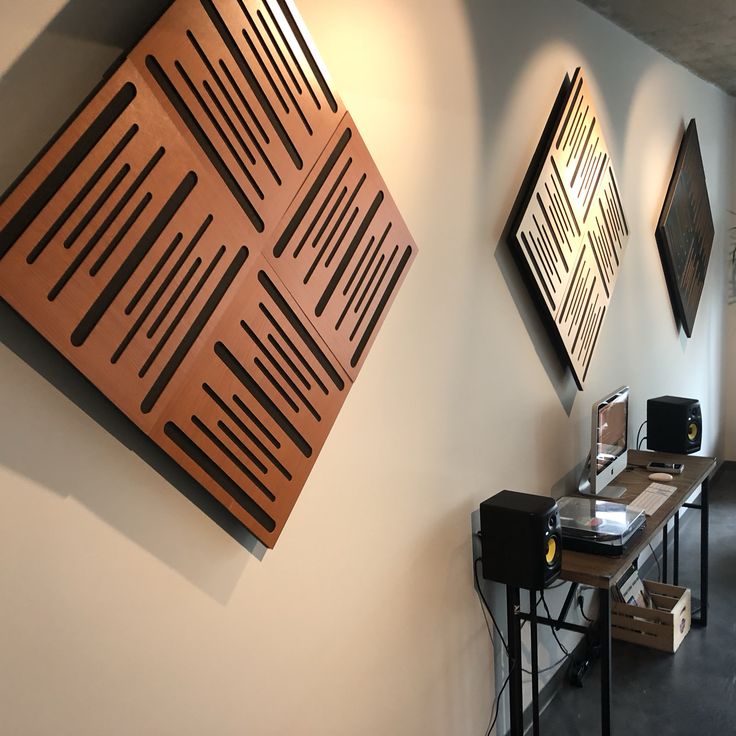

Wood veneer acoustic panels over a high-density acoustic foam core that absorb up to 70% of low frequencies from 50 to 250 Hz. The wood face diffuses as well as absorbs. Three face designs share one construction and acoustic rating. Made by MMTPL at the Palwal plant, Haryana.
The problem it solves
What SoundaXe® panels fix for you
Boomy bass in home theatres
Absorbs up to 70% of low frequencies from 50 to 250 Hz for clearer, more balanced audio.
Flutter echo and early reflections
The wood face diffuses as well as absorbs, so reflections are controlled without deadening the room.
Recording studios that sound uneven
Absorption with surface diffusion for a more balanced mix position.
Living rooms and bedrooms with hard walls
Adds sound control and a wood finish in one panel.
Boardrooms and offices
Clearer speech in meeting spaces.
Hotels and auditoriums
Acoustic control that also reads as a premium wood interior.
Applications
Where SoundaXe® panels go
Home theatres
Home theatres
Bass absorption and diffusion behind and around the screen.
Recording studios
Recording studios
Balanced room sound for tracking and mixing.
Living rooms and residences
Living rooms and residences
Wood feature walls that also treat the room.
Also used in
- Offices and boardroomsClearer speech in meeting spaces.
- Hotels and commercial spacesPremium wood finish with acoustic control.
- AuditoriumsWall and ceiling treatment on a 600 mm grid.
- Restaurants and cafesDining room feature walls.
- Schools and collegesLecture halls and seminar rooms.
- Places of worshipPrayer halls and meditation rooms.
Choose a design
Pulse, M-Dot and Vertigo compared
| SoundaXe® Pulse | SoundaXe® M-Dot | SoundaXe® Vertigo | |
|---|---|---|---|
| Face design | Wave-form slatted | Perforated circular | Vertical fluted |
| Finish | Douglas Pine | Douglas Pine | Douglas Pine |
| Panel size | 595 x 595 mm | 595 x 595 mm | 595 x 595 mm |
| Total thickness | 25 mm (±5%) | 25 mm (±5%) | 25 mm (±5%) |
| NRC | Up to 0.75 | Up to 0.75 | Up to 0.75 |
| Weight | 3 kg per panel | 3 kg per panel | 3 kg per panel |
| Warranty | 3 years | 3 years | 3 years |
Vertigo, M-Dot and Pulse share the same construction and acoustic rating, so the choice between them is aesthetic.
Specifications
Shared technical data
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Panel size | 595 x 595 mm (nominal 2 x 2 ft), fits a 600 mm modular grid |
| Total thickness | 25 mm (±5%) |
| Weight | 3 kg per panel |
| Front material | Wood veneer over pre-laminated high-density board (virgin HDF) |
| Core material | High-density acoustic foam |
| Finish options | Douglas Pine; natural wood, matte and custom finishes available |
| NRC | Up to 0.75 |
| Low-frequency absorption | Up to 70% from 50 to 250 Hz |
| Acoustic test standard | ASTM C423 |
| Fire safety | ASTM E84 compliant |
| Installation | Wall mounted or ceiling suspended; SR Liquid Adhesive or spray adhesives |
| Pack | 2 panels of 2 x 2 ft, waterproof wrap inside a carton box |
| Warranty | 3 years |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom finishes
Natural, matte or custom finish
Beyond Douglas Pine, SoundaXe® panels are available in natural wood, matte and custom finishes.
