MMT Acoustix® Baffle Suspension Kit

Baffle Hanging Wire Kit

A durable wire suspension kit for hanging acoustic ceiling baffles securely from the ceiling. Steel cable, an adjustable gripper and a U-bracket in each set, so baffles hang vertically without a full ceiling grid.

1.5 msteel cable length
Set of 10per pack
Adjustablegripper for height and level
U-bracketceiling fixing
Verticalbaffle hanging
No gridfull ceiling grid not needed
Get price on WhatsAppShop Online

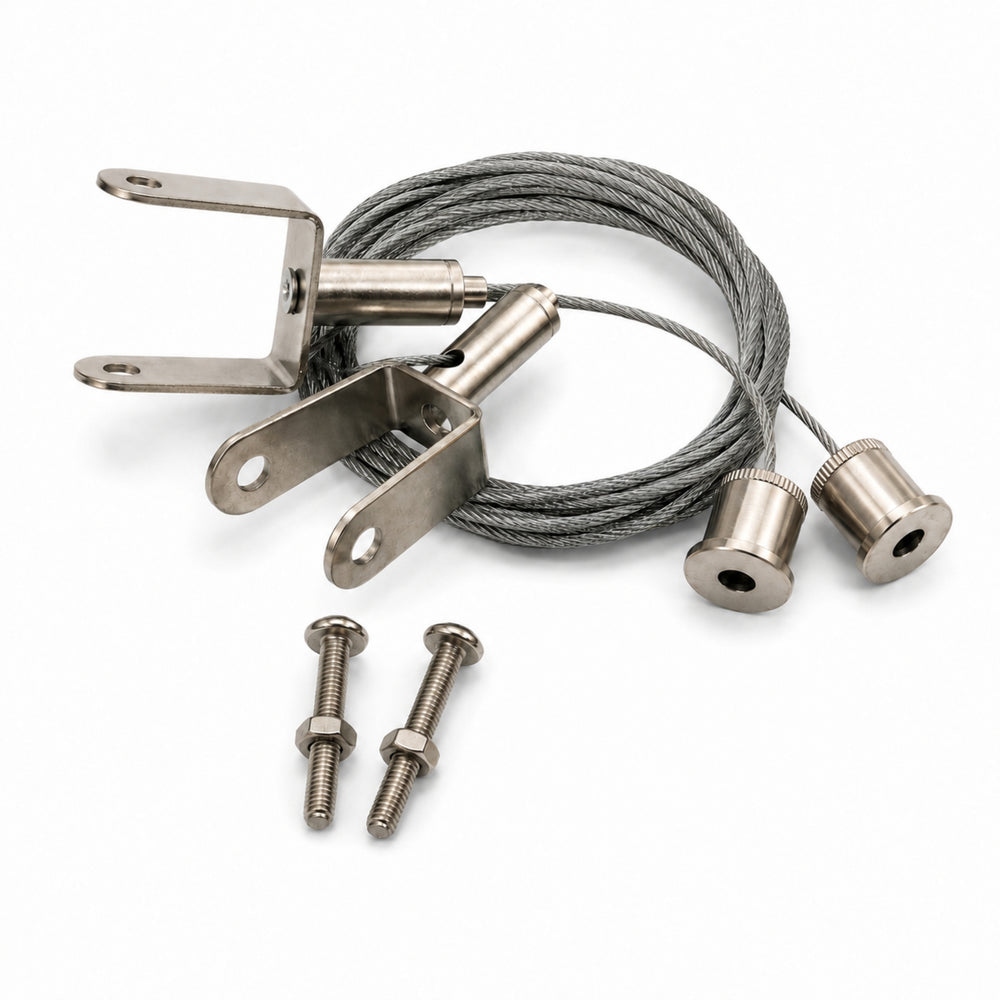

MMT Acoustix® Baffle Hanging Wire Kit

In the kit

What each set contains

Steel cable, 1.5 m

The suspension wire that carries the baffle from the ceiling.

Adjustable gripper

Sets the drop height so every baffle hangs level with the next.

U-bracket

Fixes the cable to the ceiling and holds the baffle securely.

Installation

How baffles go up

  1. 1Mark the baffle layout on the ceiling first
  2. 2Fix the U-brackets to the ceiling
  3. 3Set the drop on each cable with the gripper
  4. 4Hang the baffles vertically and align the rows

Specifications

Technical data

ProductHanging baffle wire suspension kit for acoustic baffles
ComponentsSteel cable, adjustable gripper, U-bracket
Cable length1.5 m
PackSet of 10
OrientationBaffles suspended vertically from the ceiling
CeilingNo full ceiling grid required
Used withEchsorbix® PET felt ceiling baffles, 4 x 1 ft and 4 x 2 ft

Used with

Made for Echsorbix® ceiling baffles

The kit hangs our acoustic ceiling baffles, PET felt in 9 mm and 18 mm, 4 x 1 ft and 4 x 2 ft. Hung vertically from the ceiling, baffles expose more surface area to sound energy.

Layout depends on ceiling height and the acoustic goal. Proper alignment and spacing give uniform results across the room, and the baffles are light enough not to overload the ceiling when properly installed.

Soundproofing: the fix for every sound problem

3-layer soundproofing

  1. 1

    Layer 1: SoundBlanket® MLV

    The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.

  2. 2

    Layer 2: BassBloc®

    High-density sound absorber over the MLV that controls low-frequency noise.

  3. 3

    Layer 3: Echsorbix®, SoundaXe® or WDWL®

    The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.

Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.

Different thickness in each layer will give different STC and NRC levels.

3-layer soundproofing: SoundBlanket MLV, BassBloc and acoustic finish panel build-up

FAQs

Questions about the baffle hanging wire kit

What is in the kit?
Steel cable, an adjustable gripper and a U-bracket.
How long is the cable?
1.5 m.
How is it sold?
As a set of 10.
Do I need a ceiling grid?
No. Baffles hang from the ceiling on the cables, so a full ceiling grid is not required.
Which baffles does it suit?
Our Echsorbix® PET felt ceiling baffles, 4 x 1 ft and 4 x 2 ft, in 9 mm and 18 mm.
How do I keep the baffles level?
Set the drop on each cable with the adjustable gripper, and mark the layout on the ceiling before fixing.
