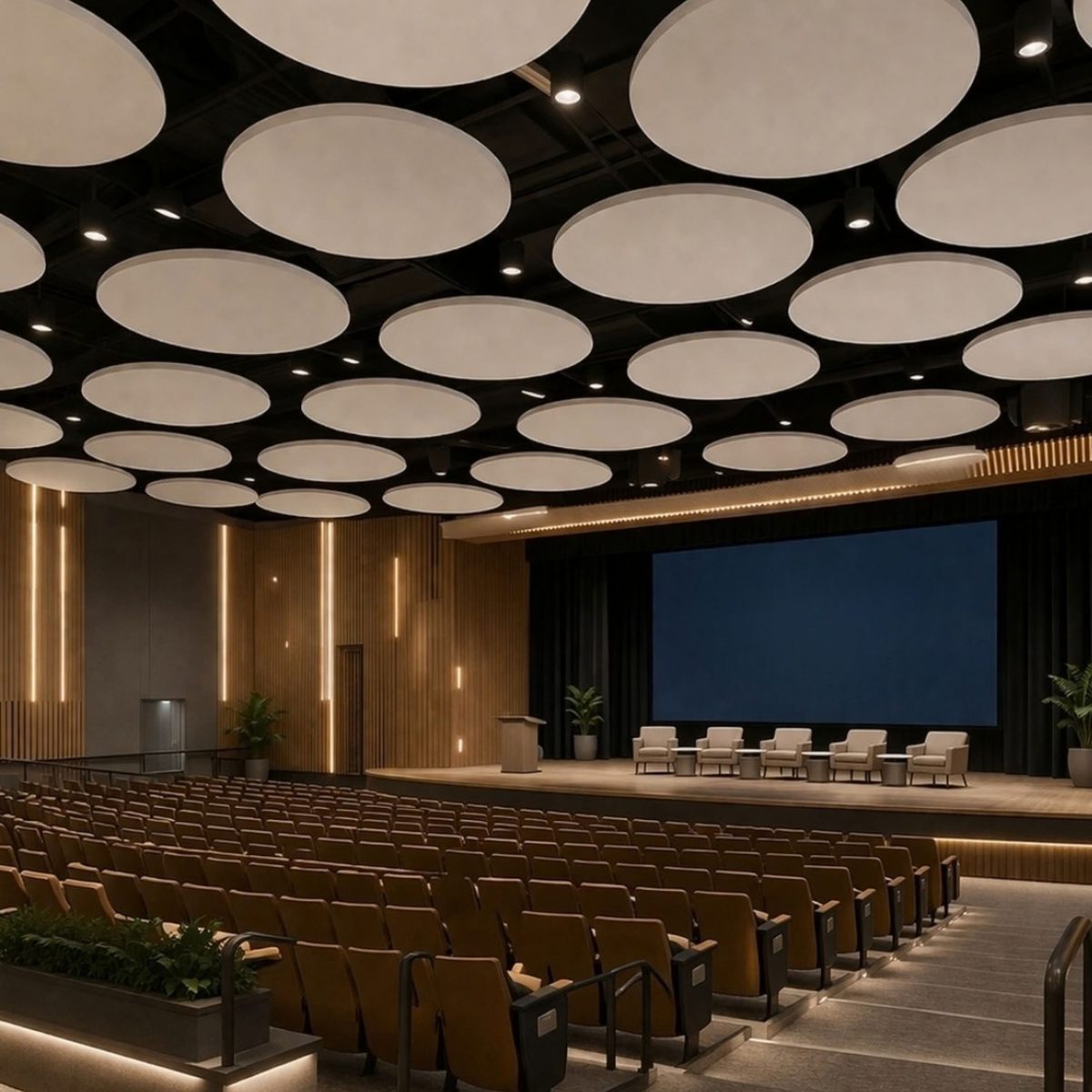

Echsorbix® Acoustic Ceiling Cloud
Acoustic Ceiling Clouds
PET felt clouds suspended horizontally from the ceiling slab. They reduce echo, cut reverberation and improve speech clarity in large open spaces with high ceilings. Made from 100% non-woven PET polyester fibre by MMTPL at the Palwal plant, Haryana.
The problem it solves
What Echsorbix® ceiling clouds fix for you

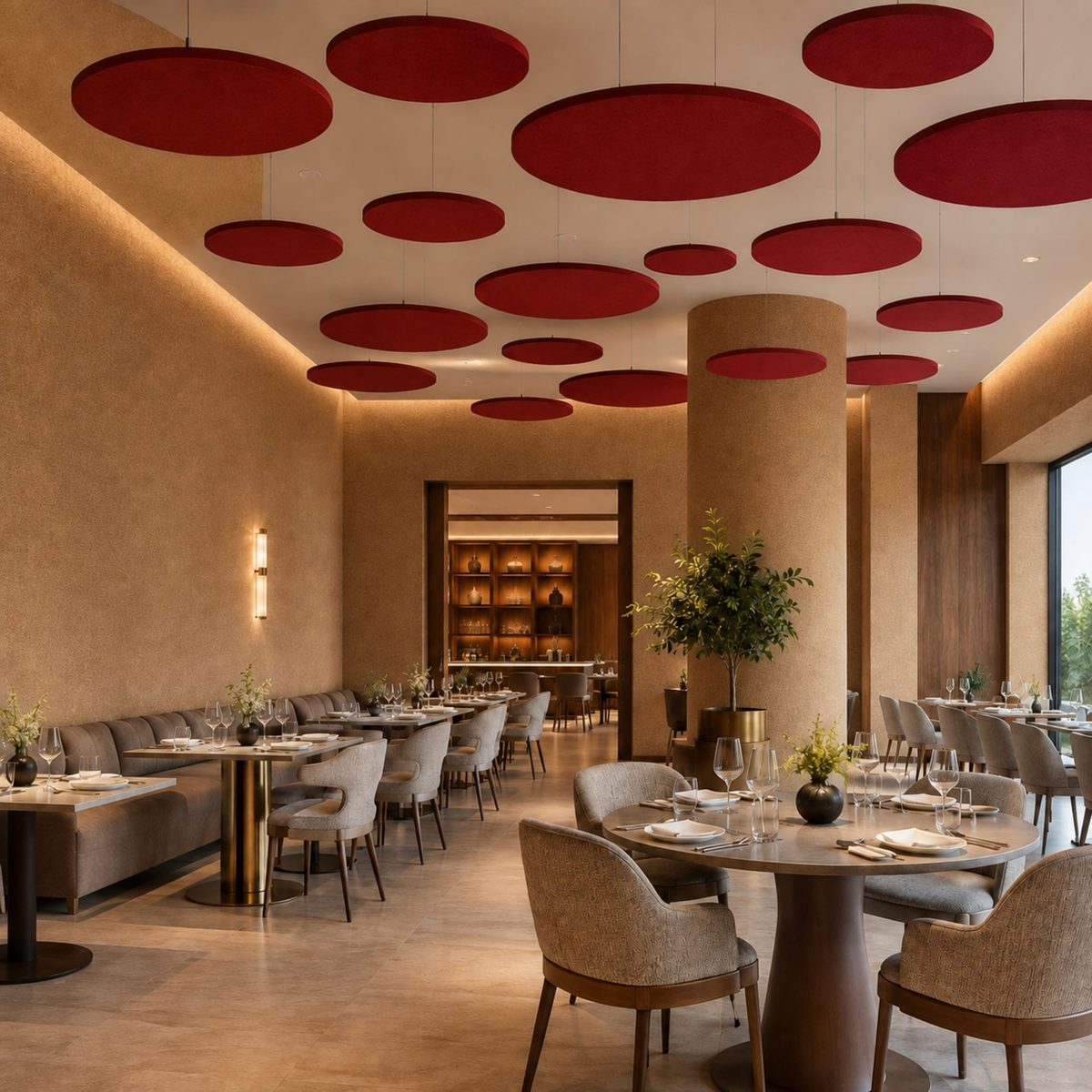

Echo under high, open ceilings
Clouds present their full face to the room and absorb the reflections that build up in large spaces.
Poor speech clarity
Voices carry clearly in open-plan offices, conference rooms and classrooms.
Noisy lecture halls and auditoriums
Reverberation comes down so every seat hears clearly.
Loud restaurants, cafes and lobbies
Less noise build-up over tables and seating.
Echoing museums, libraries and exhibition halls
Calmer spaces for visitors and readers.
Reverberant warehouses and plants
Treats noise in large industrial volumes.
Applications
Where Echsorbix® clouds go

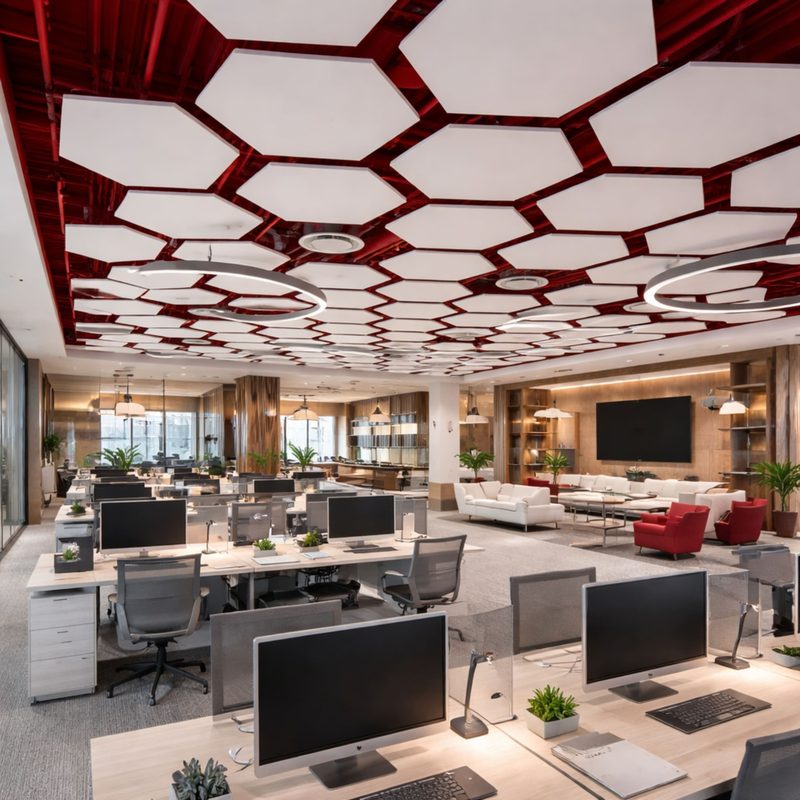

Commercial spaces
Open-plan offices, coworking spaces, conference rooms.

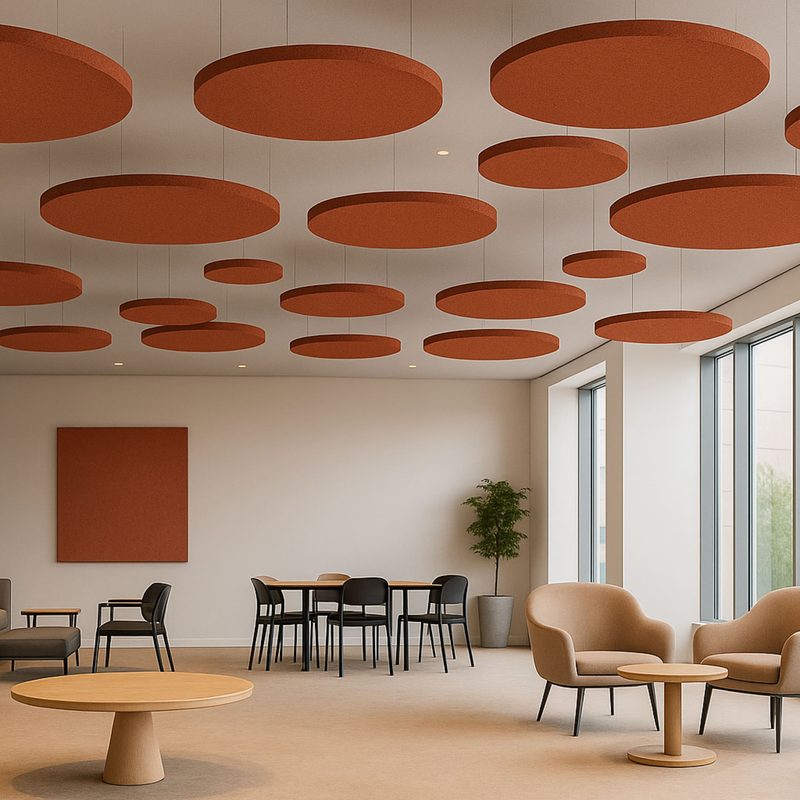

Educational institutions
Classrooms, lecture halls, auditoriums.

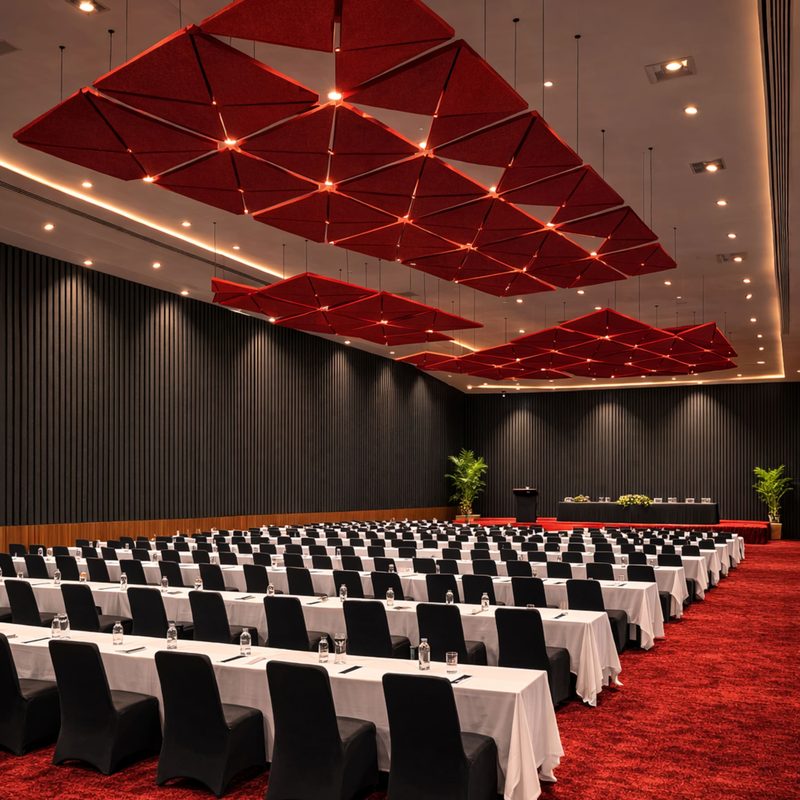

Public spaces
Museums, libraries, exhibition halls.
Also used in
- HospitalityRestaurants, cafes, hotel lobbies.
- Healthcare facilitiesClinics, hospitals, waiting areas.
- Industrial spacesWarehouses, manufacturing plants.
- Offices and co-workingOpen-plan work floors.
- Restaurants and cafesDining areas with hard ceilings.
- AuditoriumsSuspended reflectors and absorbers.
Specifications
Technical data
| Material | 100% PET polyester fibre, non-woven |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Standard thickness | 9, 12, 18, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | Custom, to project requirement |
| Areal weight | 1200 to 3600 GSM |
| Density grades | EchoCore 15 (1500 GSM), EchoPro 18 (1800 GSM), EchoMax 22 (2200 GSM) |
| NRC | 0.30 (9 mm), 0.40 (12 mm), 0.50 (18 mm), 0.60 (24 mm), 0.90 (9 mm over 20 mm BassBloc®) |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recycled content | Minimum 60%, 100% recyclable |
| Colours | 40+ standard; custom development available |
| Mounting | Horizontal suspension from ceiling slab |
| Customisation | CNC cut shapes, patterns and sizes |
| Lead time | 3 to 7 days |
| Warranty | 5 year colour fastness |
| Country of origin | India |
Soundproofing: the fix for every sound problem

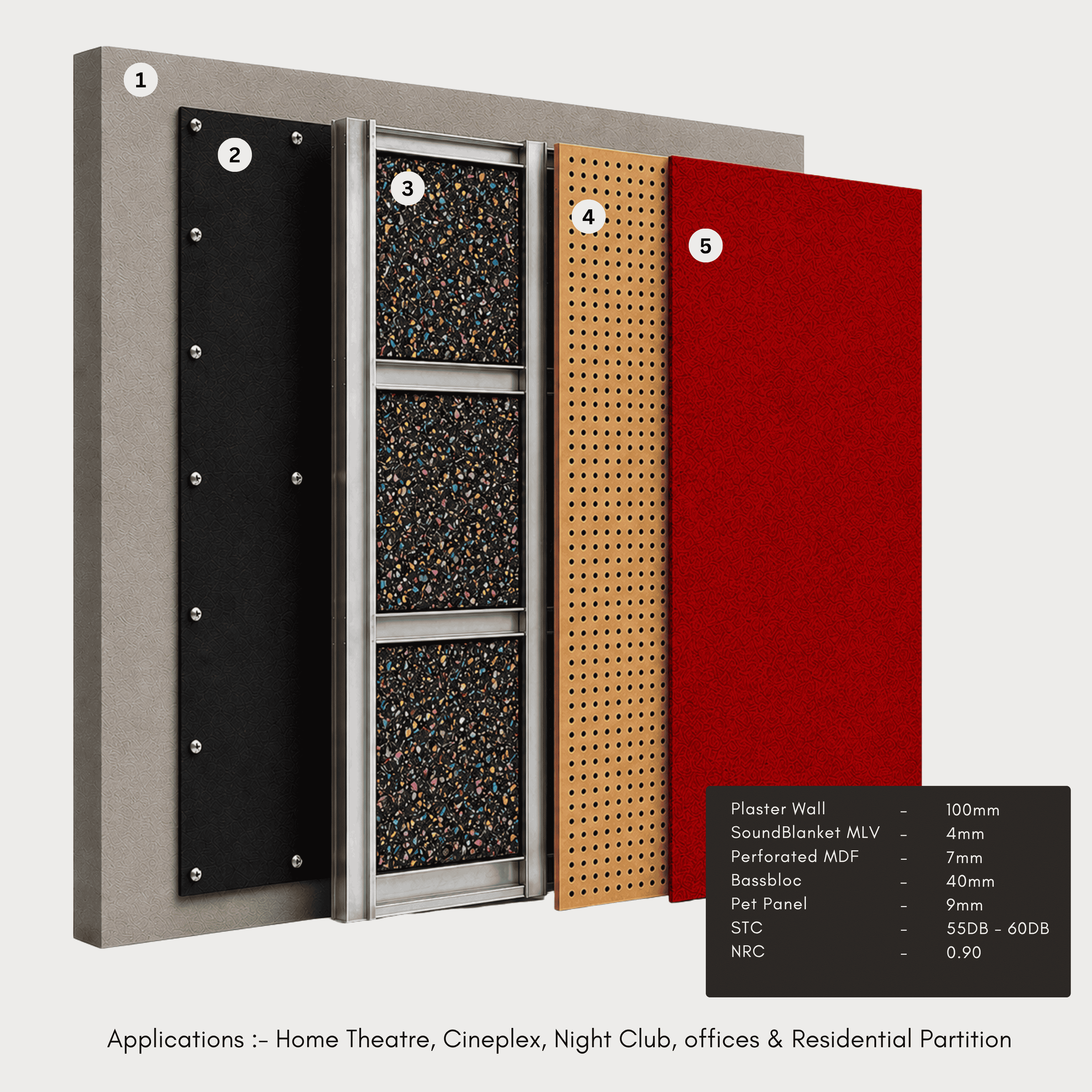

3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and OEM
CNC cut shapes, custom colours
Shapes, patterns and sizes are CNC cut to the project requirement, in 40+ colours with custom colour development available. BOQ, specification and drawing support for project quantities.
