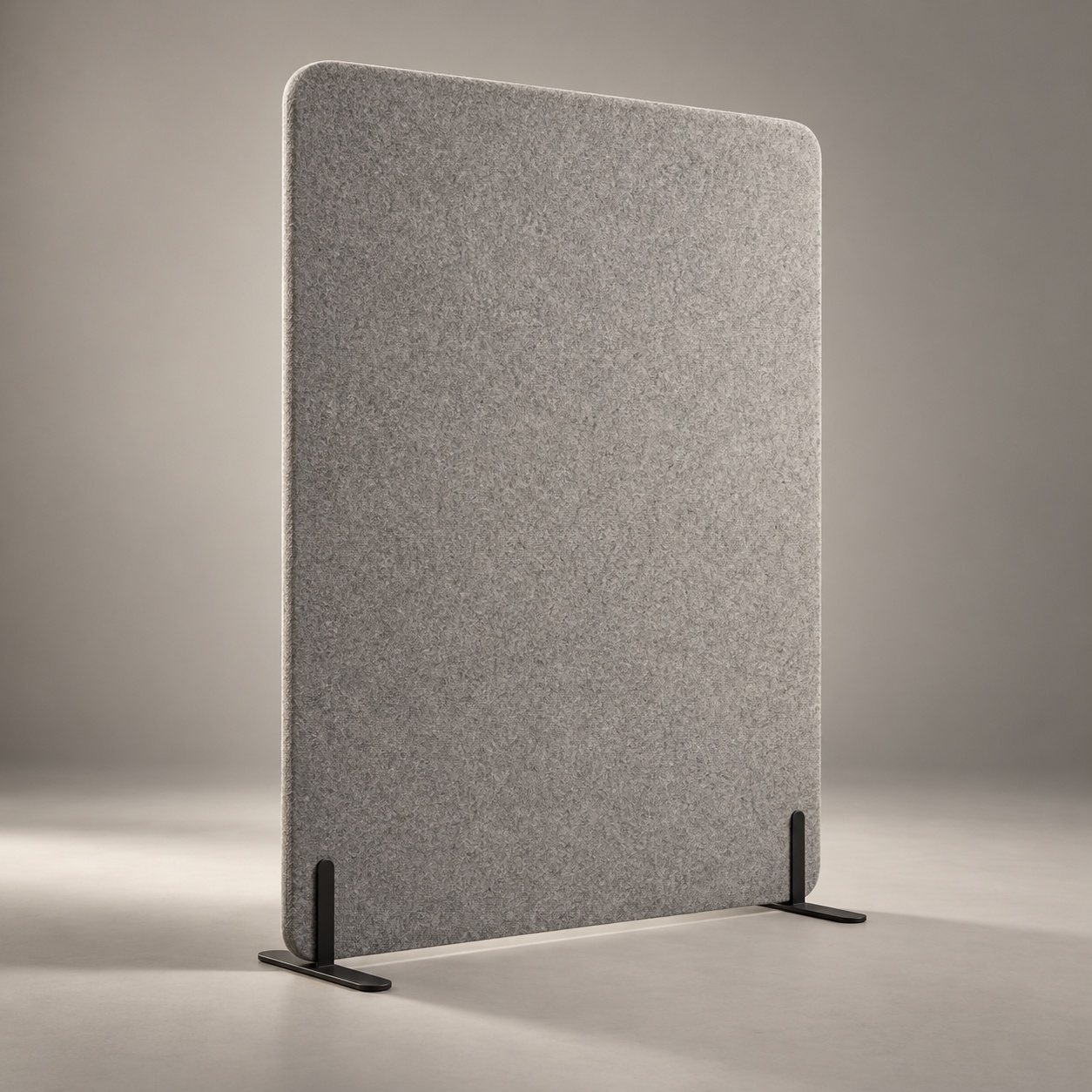

Echsorbix® Screen
Freestanding Acoustic Screens
Freestanding PET felt screens that absorb sound, improve speech clarity and reposition as your layout changes. Made from 100% PET polyester fibre by MMTPL at the Palwal plant, Haryana.
Send the photo to use here

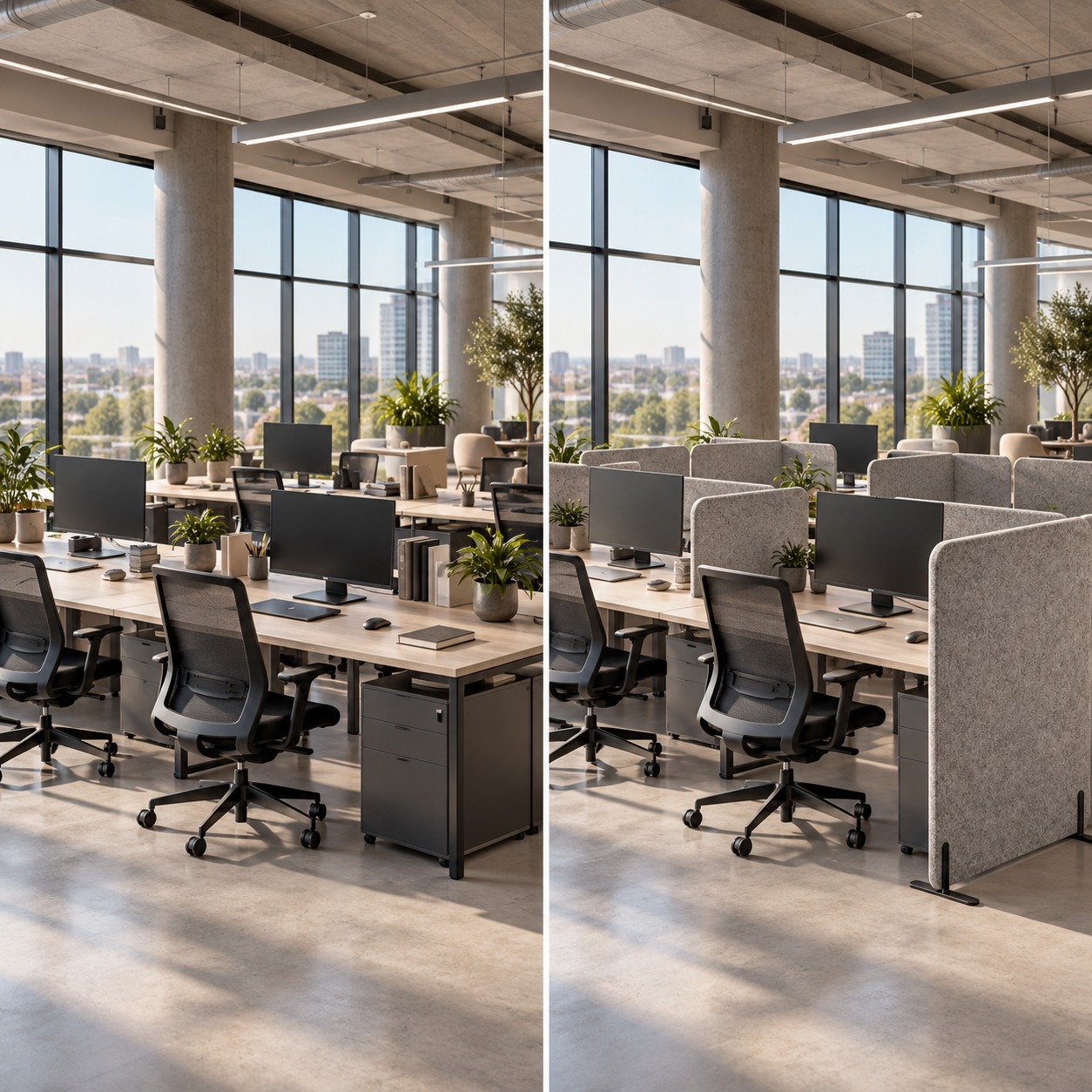

Open office before and after Echsorbix® screens
The problem it solves
What Echsorbix® screens fix for you
Chatter across open-plan offices
Screens reduce sound transmission between desks and improve speech clarity.
Layouts that keep changing
Freestanding and easily repositioned, no fixing to floor or wall.
Distraction in co-working spaces
Defines zones and cuts noise between teams.
Noisy libraries and study zones
Quieter spaces to focus.
Busy reception, waiting and healthcare areas
Calmer, more private waiting zones.
Applications
Where Echsorbix® screens go

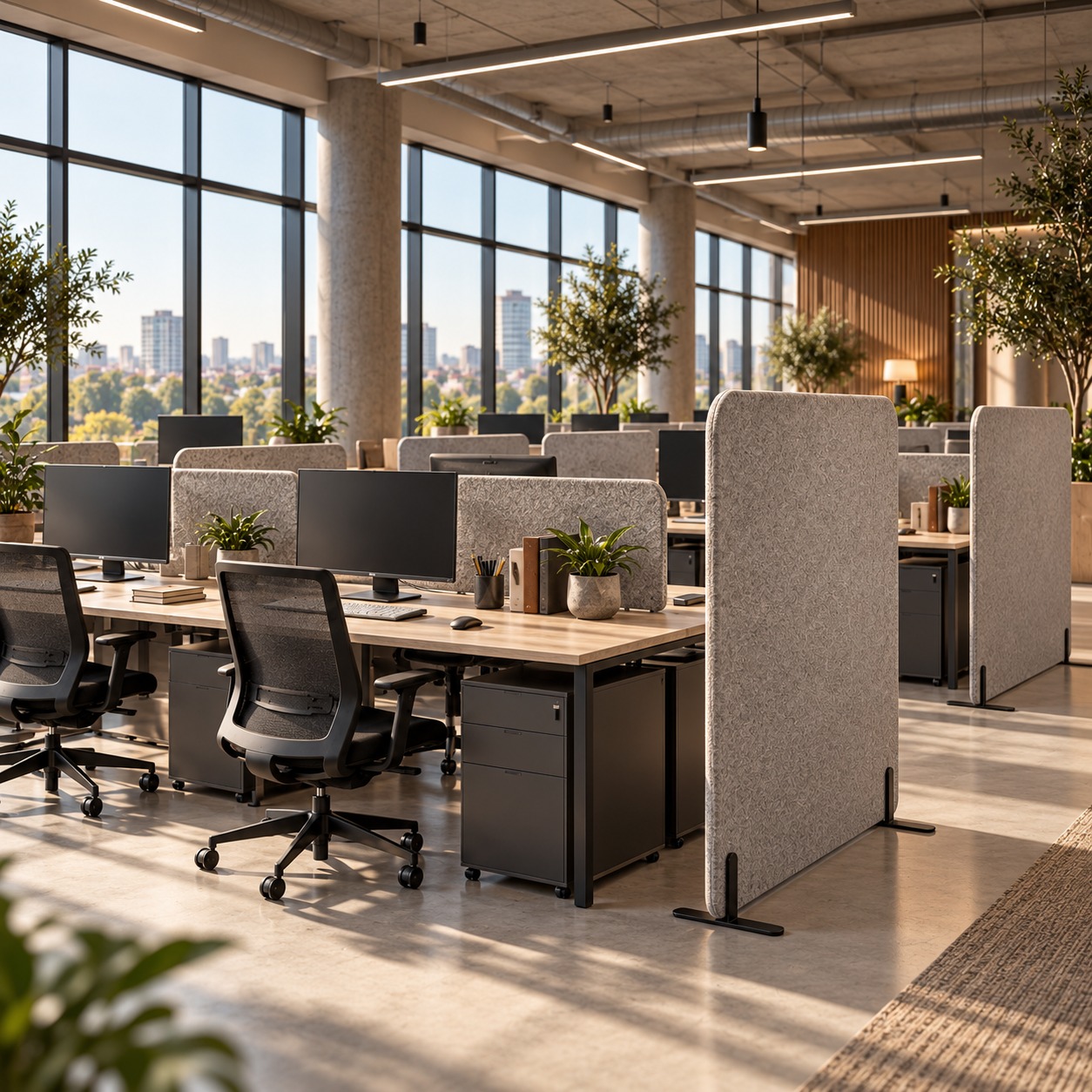

Open-plan offices
Open-plan offices

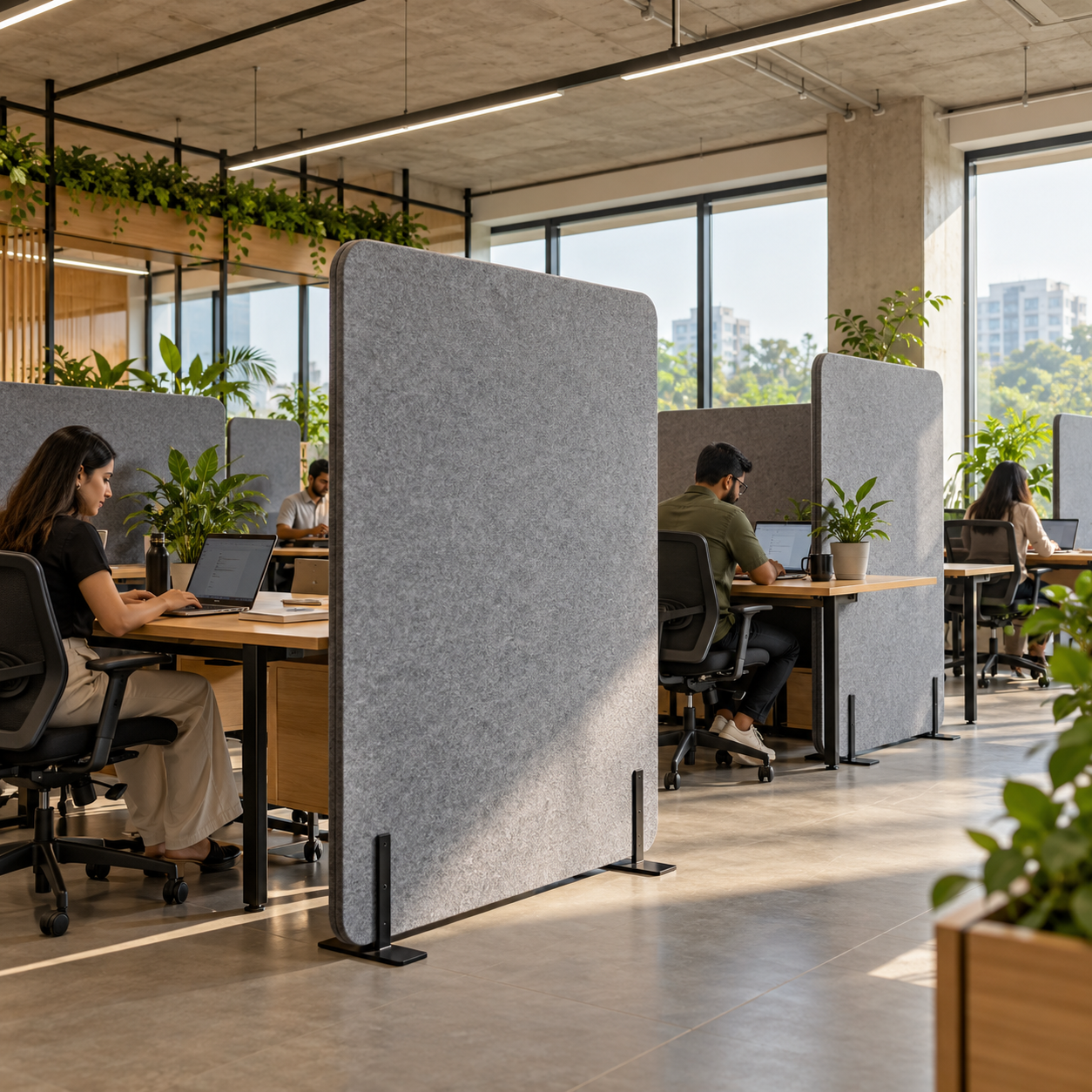

Co-working spaces
Co-working spaces

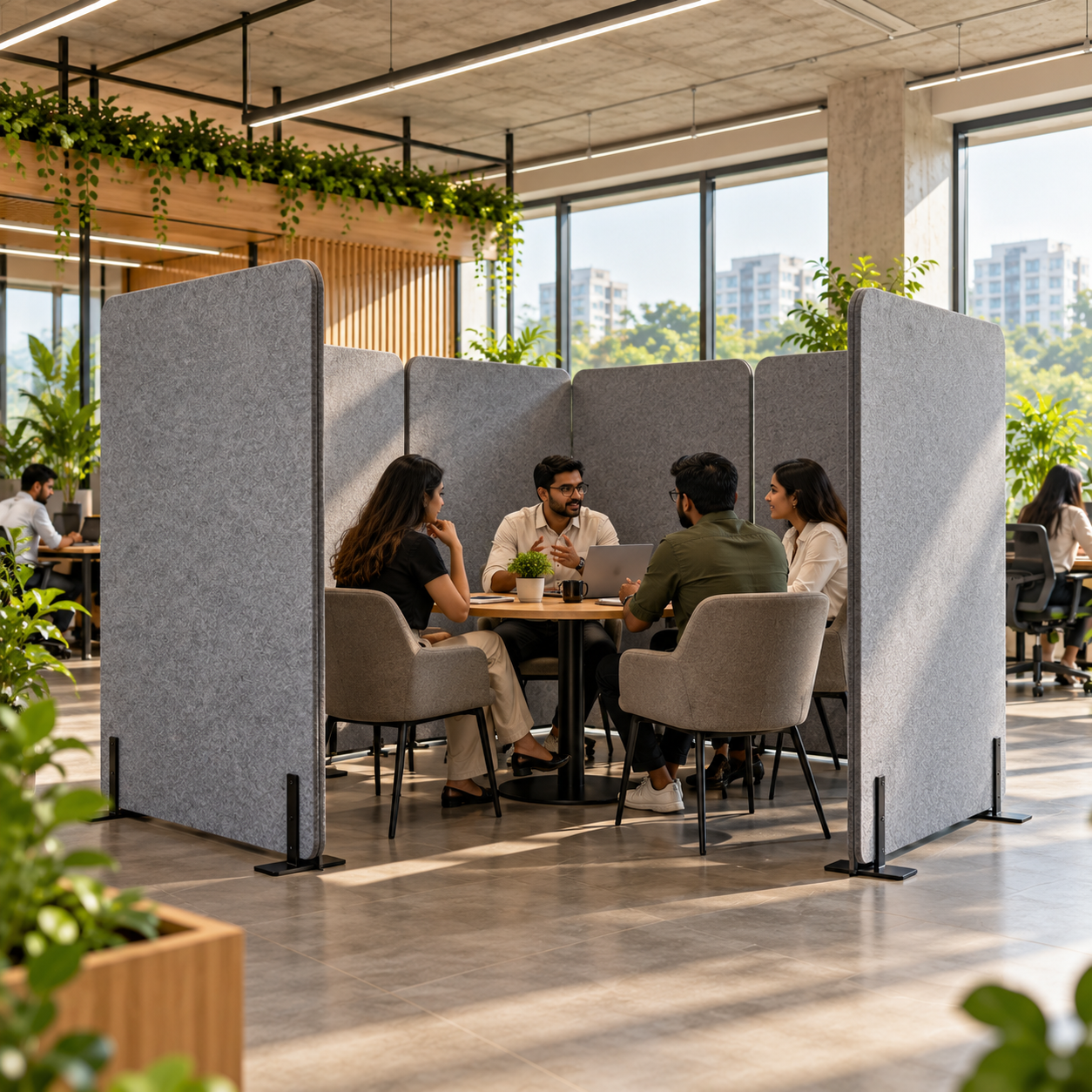

Meeting and conference rooms
Meeting and conference rooms
Also used in
- Libraries and study zones
- Healthcare facilities
- Reception and waiting areas
- Schools and collegesClassroom and staff room dividers.
- Banks and service countersPrivacy between desks.
- Call centresNoise control between agents.
Why Echsorbix® screens
Key features
Flexible space management
Easily repositioned for changing layouts.
Acoustic comfort
Reduces sound transmission and improves speech clarity.
Aesthetic appeal
Available in 40+ shades for design harmony.
Customisable designs
CNC cutting for intricate patterns and shapes.
Eco-friendly
Made from 100% recyclable PET fibres with low VOC emissions.
Quick installation
Lightweight and easy to set up.
Specifications
Technical data
| Material | 100% PET polyester fibre, non-woven |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Standard thickness | 9, 12, 18, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1800 x 900 mm (6 x 3 ft) |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15 (1500 GSM), EchoPro 18 (1800 GSM), EchoMax 22 (2200 GSM) |
| NRC | 0.30 (9 mm), 0.40 (12 mm), 0.50 (18 mm), 0.60 (24 mm), 0.90 (9 mm over 20 mm BassBloc®) |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recycled content | Minimum 60%, 100% recyclable |
| Colours | 40+ standard; custom development available |
| Design options | Smooth, textured, CNC custom cuts |
| Installation | Freestanding, optional mounting accessories |
| Lead time | 3 to 7 days |
| Warranty | 5 year colour fastness |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and OEM
CNC cut faces, custom colours
Faces are available smooth, textured or CNC cut to a custom pattern, in 40+ colours with custom colour development available. BOQ, specification and drawing support for project quantities.
